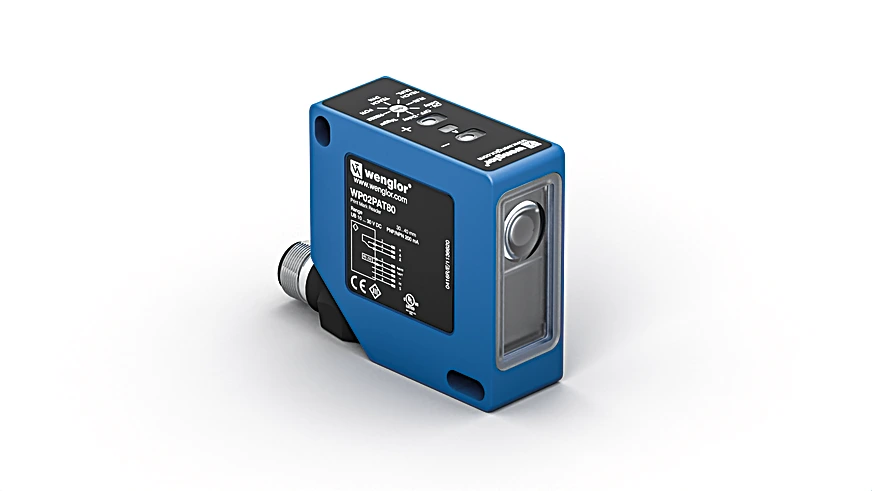

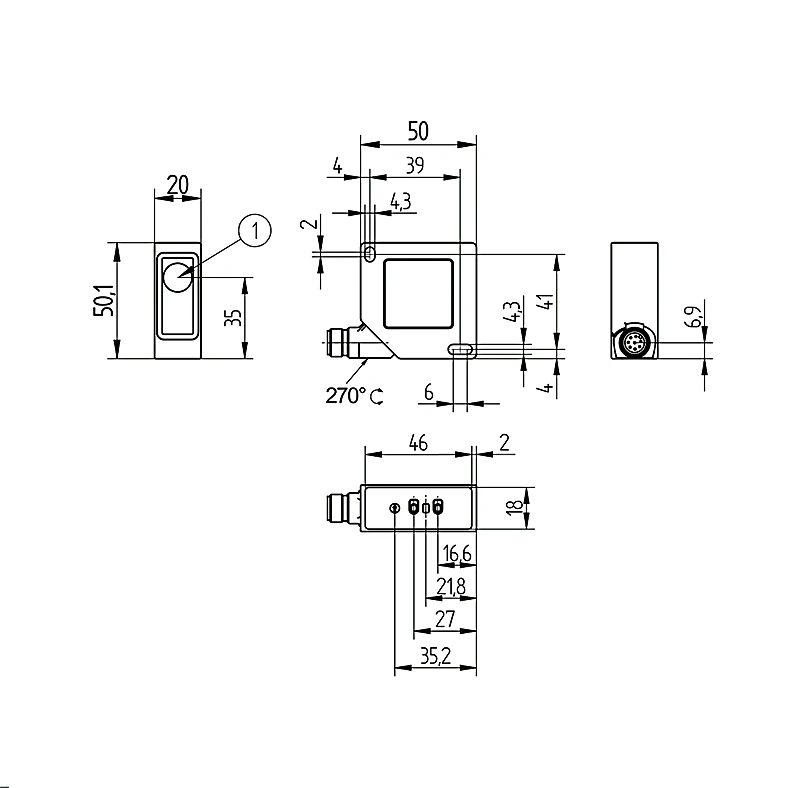

Wenglor WP04PAT80 Print Mark Reader

Print Mark Reader.

$770.00
Part Number
  • WP04PAT80
Highlights...

Features

  • Digital read-out of gray-scale values via the RS-232 interface
  • Very high contrast resolution
  • Very small light spot: 1,4 × 4 mm

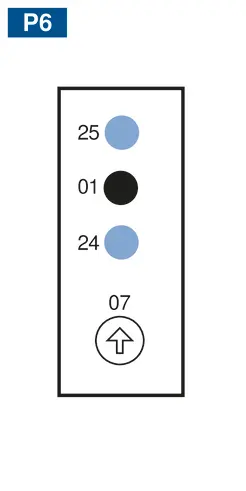

  • Teach-in, dynamic teach-in, external teach-in, RS-232 interface

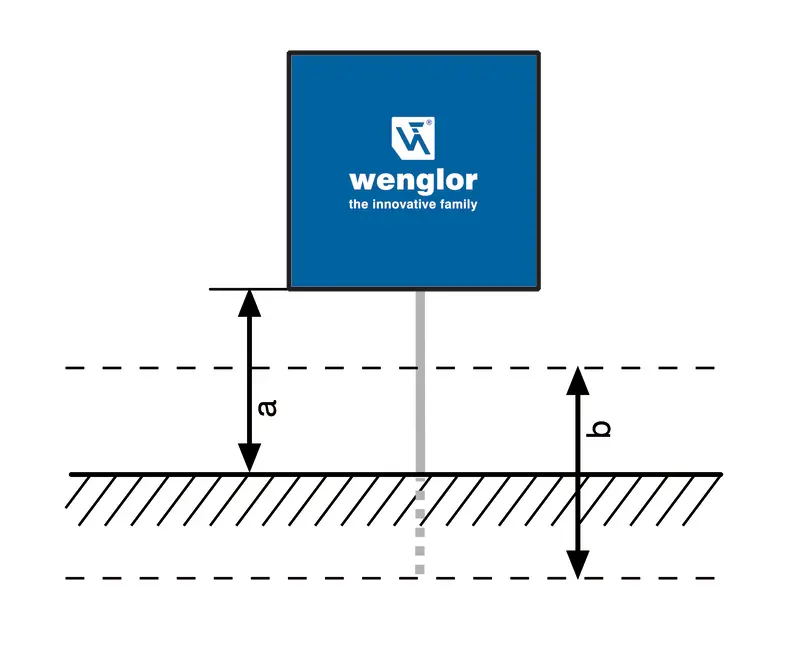

  • Working Range: 30 to 40 mm
  • Working Distance: 35 mm
  • Resolution (Gray Scale): 100
  • Switching Hysteresis: < 1 %
  • Light Source: White Light
  • Wavelength: 400 to 700 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 1.4 × 4 mm
  • Supply Voltage: 10 to 30 V
  • Current Consumption (Ub = 24 V): < 50 mA
  • Switching Frequency: 25 kHz
  • Response Time: 20 µs
  • On-/Off-Delay: 0 to 100 ms
  • Temperature Drift: < 1 %
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: 1.5 V
  • Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Lockable: yes
  • Teach Mode: ZT, DT, TP
  • Interface: RS-232
  • Transmission rate: 38,400 Bd
  • Number of Digital Inputs: 2
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS, Plastic, PC
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67

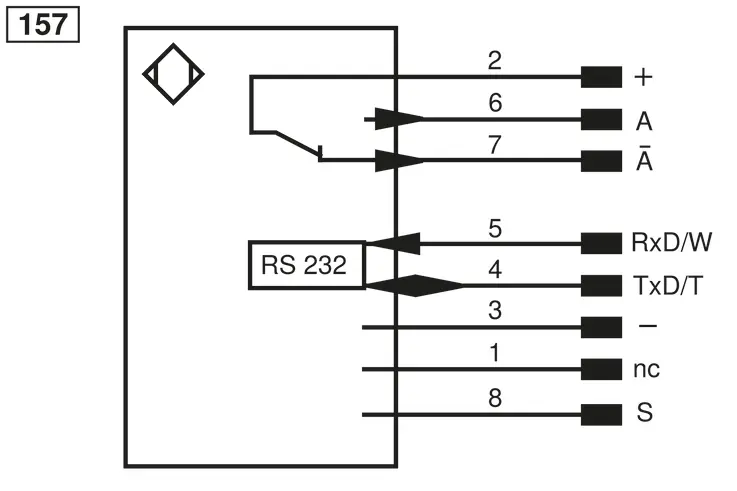

  • Connection: M12 × 1; 8-pin
  • Weight: 40 g
  • MTTFd (EN ISO 13849-1): 1,079.38 a
  • Scope of delivery: 1 × BEF-SET-02 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NC, PNP NO: yes
  • RS-232 Interface: yes
  • External teach-in input: yes
  • Complementary Products: Interface Cable S232W3, Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, Fieldbus Gateway ZAGxxxN01, EPGG001, Software, Dust extraction tube
These sensors have been specially designed to recognize print marks. They have a very small spot and use a white light LED with long service life. Only one sensor is required for the recognition of all color combinations, as well as the difference in brightness between print marks and the background.
