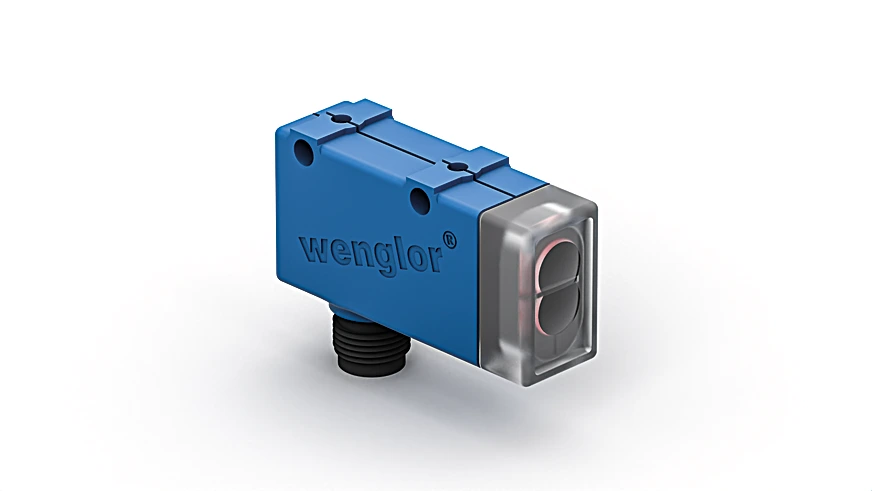

Wenglor WM03PCT2S614 Print Mark Reader

Print Mark Reader.

$437.00
Part Number
  • WM03PCT2S614
Highlights...

Features

  • Small light spot
  • Compact housing
  • White light for recognition of any print mark combinations
  • Teach-in, external teach-in

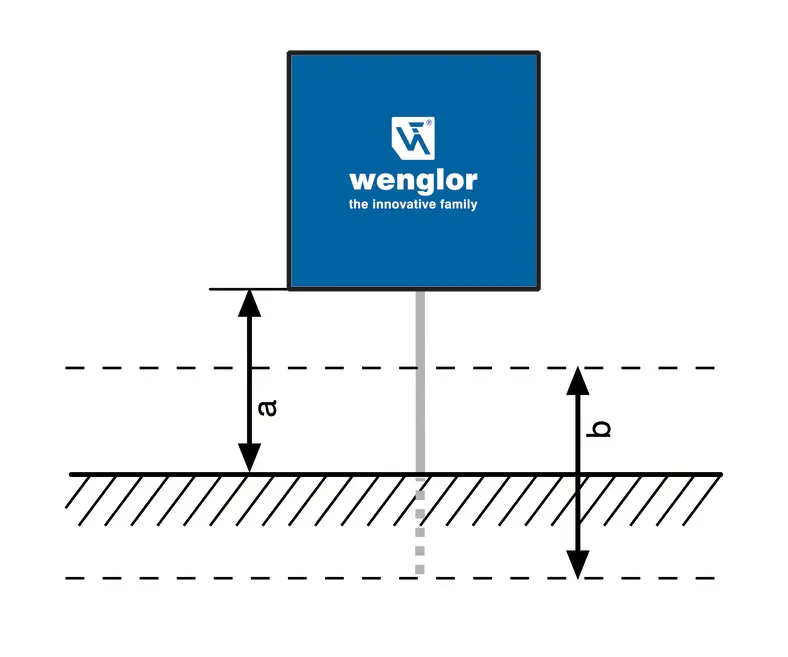

  • Working Range: 12 to 18 mm
  • Working Distance: 15 mm
  • Resolution (Gray Scale): 20
  • Switching Hysteresis: < 2 %
  • Light Source: White Light
  • Wavelength: 400 to 700 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 1.5 × 2.5 mm
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 10 kHz
  • Response Time: 50 µs
  • On-/Off-Delay (RS-232): 20 ms
  • Temperature Drift: < 2 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: ZT, FT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Plastic, PBT
  • Optic Cover: Plastic, PMMA
  • Full Encapsulation: yes
  • Degree of Protection: IP67

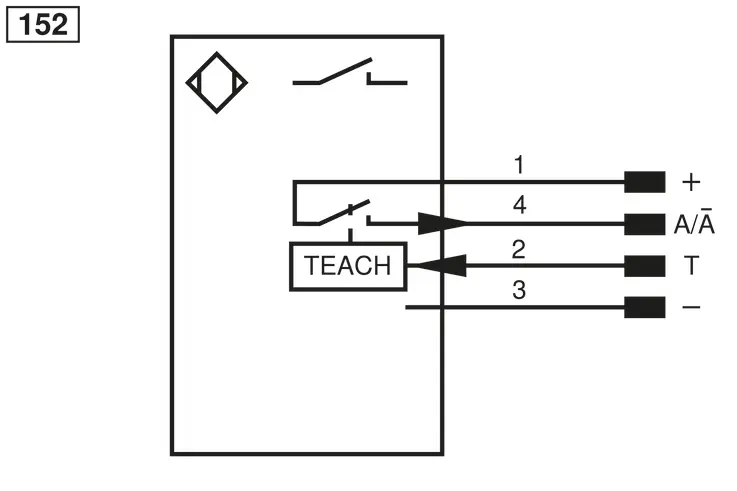

  • Connection: M12 × 1; 4-pin
  • Weight: 51 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NO/NC switchable: yes
  • RS-232 with Adapterbox: yes
  • External teach-in input: yes
  • Output: PNP
  • Circuit: NC, NC/NO, NO
  • Complementary Products: Adapterbox A232, PNP-NPN Converter BG2V1P-N-2M
These sensors have been specially designed to recognize print marks. They have a very small spot and use a white light LED with long service life. Only one sensor is required for the recognition of all color combinations, as well as the difference in brightness between print marks and the background.
