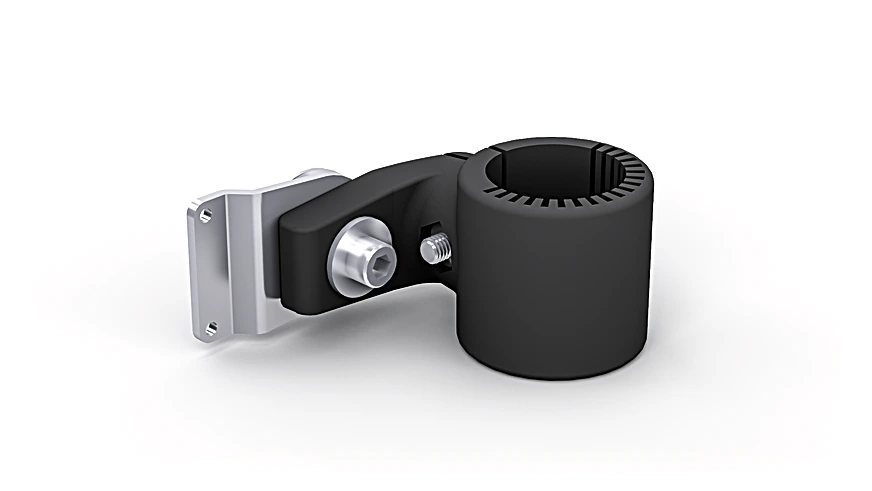

Wenglor WKS30KU Mounting for 32 × 16/22 × 12 mm (K/1K)

Mounting for 32 × 16/22 × 12 mm (K/1K).

$21.90
Part Number
  • WKS30KU
Highlights...

Features

  • Simple installation
  • Flexible alignment options

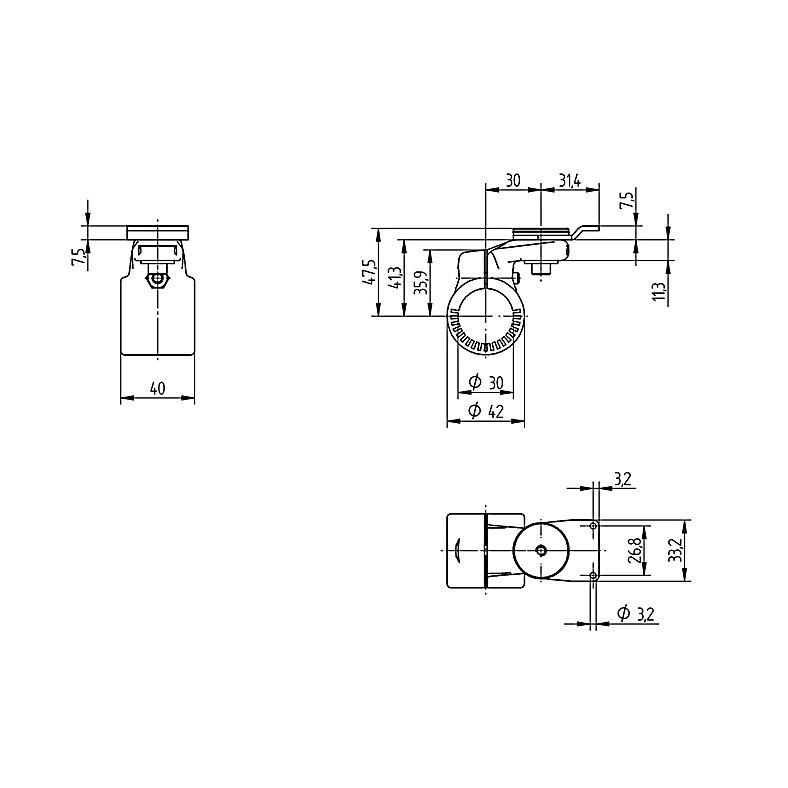

  • For 32 × 16/22 × 12 mm
  • Plastic
  • Mounting type, device-side: Screwable to mounting plate
  • Mounting type, system-side: Mounting bar
  • Material Mounting Head: Plastic, PA
  • Material Mounting Plate: Stainless steel, V2A (1.4301/304)
  • for Round Profile Diameter: 30 mm
  • Weight: 108 g
  • Scope of delivery: 1 × mounting head, 1 × mounting plate, 1 × M6 screw × 25 mm
  • Packaging unit: 1 Piece
  • Use: for square housing

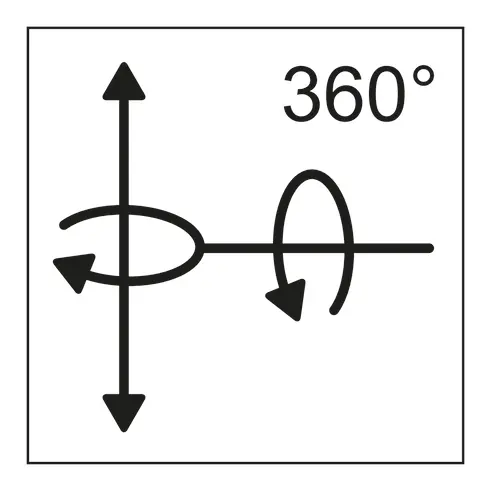

The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
