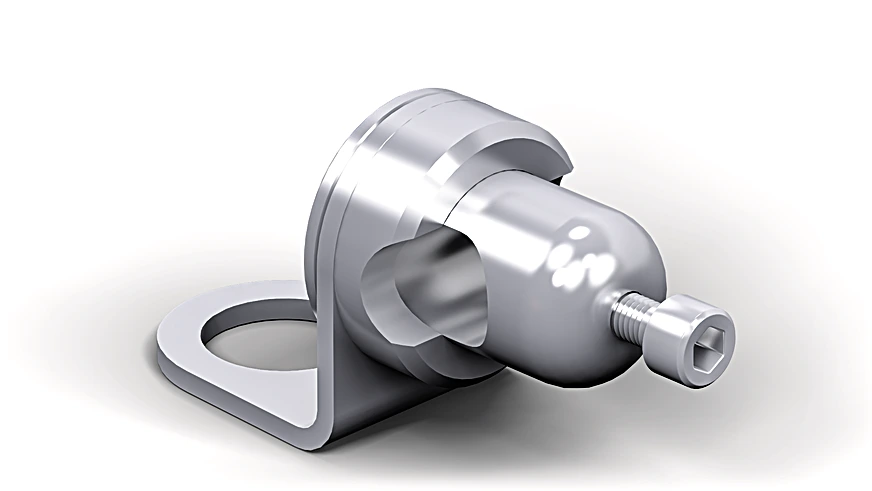

Wenglor W18S12VA Mounting for M18 × 1

Mounting for M18 × 1.

$34.40
Part Number
  • W18S12VA
Highlights...

Features

  • Stainless steel
  • Simple installation
  • Flexible alignment options
  • For M18 × 1
  • Mounting type, device-side: Clampable to mounting plate
  • Mounting type, system-side: Mounting bar
  • Material Mounting Head: Stainless steel, V2A (1.4305/303)
  • Material Mounting Plate: Stainless steel, V2A (1.4301/304)
  • for Round Profile Diameter: 8 to 13 mm
  • Weight: 115 g
  • Scope of delivery: 1 × mounting head, 1 × mounting plate, 1 × M6 screw × 20 mm
  • Packaging unit: 1 Piece
  • Use: for threaded housing

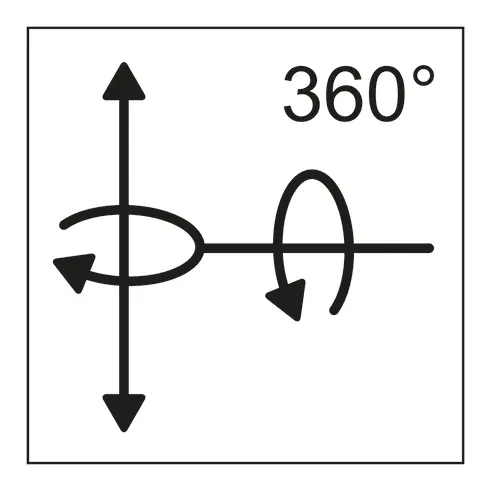

The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
