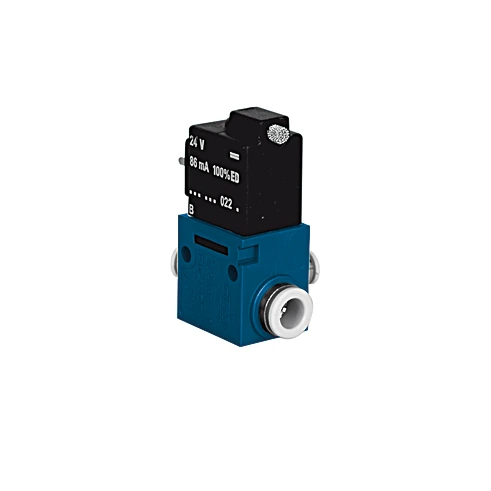

Wenglor VENTIL-K25 Solenoid Valve

Solenoid Valve.

$216.00
Part Number
  • VENTIL-K25
Highlights...

Features

  • Weight: 79 g
  • Scope of delivery: 1 × solenoid valve
  • Valve no.: K25
  • Supply Voltage Valve: 19.2 to 28.8 V
  • Current Consumption Valve: 86 mA
  • Operating Pressure: 0 to 4 bar
  • Nominal Width: 1.2 mm
  • Nominal flow rate 1 -> 2: 50 NL/min
  • Supply-Line Connector Pipe: 2× 8×1
  • Working-Line Connector Pipe: 4×1
  • Switching function: NC
  • Valve function: 3/2-Way
