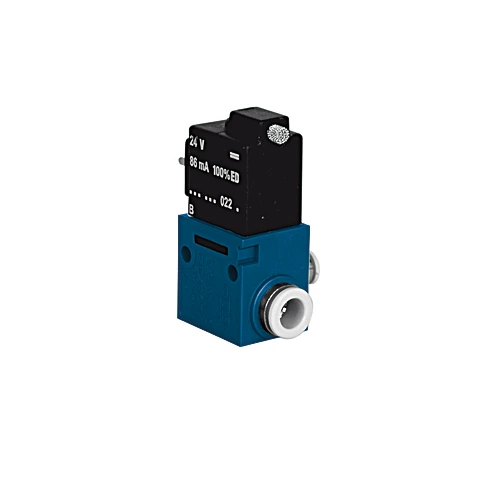

Wenglor VENTIL-K04 Solenoid Valve for Roller Conveyor Systems

Solenoid Valve for Roller Conveyor Systems.

$186.00
Part Number
  • VENTIL-K04
Highlights...

Features

  • Weight: 85 g
  • Scope of delivery: 1 × solenoid valve
  • Valve no.: K04
  • Supply Voltage Valve: 19.2 to 28.8 V
  • Current Consumption Valve: 86 mA
  • Operating Pressure: 4 to 7 bar
  • Nominal Width: 0.8 mm
  • Nominal flow rate 1 -> 2: 20 NL/min
  • Nominal flow rate 2 -> 3: 100 NL/min
  • Supply-Line Connector Pipe: 2× 8×1
  • Working-Line Connector Pipe: 4×1
  • Switching function: NC
  • Valve function: 3/2-Way
