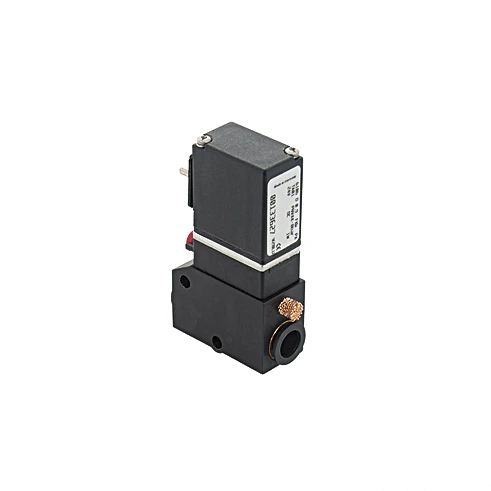

Wenglor VENTIL-K03 Solenoid Valve

Solenoid Valve.

$216.00
Part Number
  • VENTIL-K03
Highlights...

Features

  • Weight: 76 g
  • Scope of delivery: 1 × solenoid valve
  • Valve no.: K03
  • Supply Voltage Valve: 21.6 to 26.4 V
  • Current Consumption Valve: 42 mA
  • Operating Pressure: 0 to 8 bar
  • Nominal Width: 0.9 mm
  • Nominal flow rate 1 -> 2: 22 NL/min
  • Nominal flow rate 2 -> 3: 25 NL/min
  • Supply-Line Connector Pipe: 2× 8×1
  • Working-Line Connector Pipe: 4×1
  • Switching function: NO
  • Valve function: 3/2-Way
