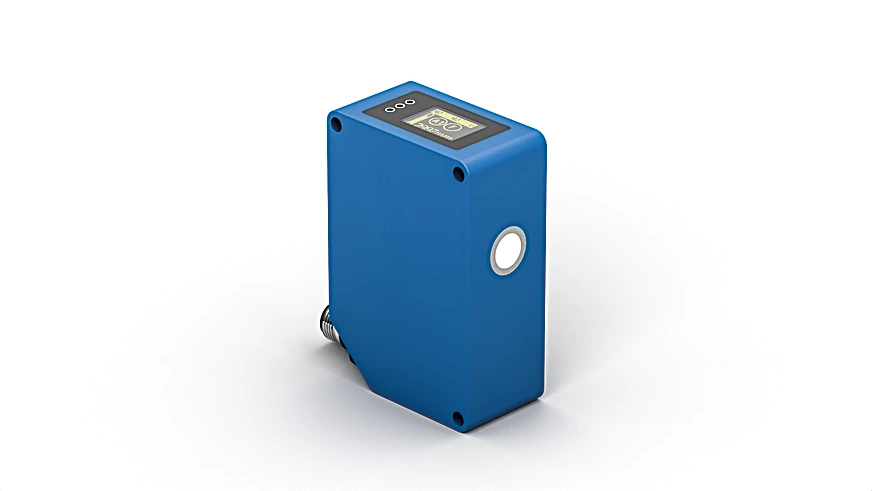

Wenglor UMS123U035 Distance Sensor

Distance Sensor.

$883.00
Part Number
  • UMS123U035
Highlights...

Features

  • Digital and analog output
  • Synchronous and multiplex mode
  • Temperature drift eliminable
  • Menu-driven settings
  • Working Range: 100 to 1,200 mm
  • Measuring Range: 1,100 mm
  • Reproducibility maximum: 1 mm
  • Linearity Deviation: 4 mm
  • Resolution: 0.2 mm
  • Ultrasonic Frequency: 225 kHz
  • Opening Angle: < 12 °
  • Service Life (T = 77°F): 100,000 h
  • Switching Hysteresis: 5 mm
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 7 Hz
  • Response Time: < 72 ms
  • Temperature Range: -22°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Analog Output: 4 to 20 mA
  • Synchronous Mode: up to 40 sensors
  • Multiplex Mode: up to 16 sensors
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.0
  • Protection Class: III
  • Setting Method: Menu (OLED), IO-Link
  • Housing Material: Plastic, ABS
  • Sensing face: Epoxy resin/glass bubble mixture, Plastic, PBT, Silicone
  • Degree of Protection: IP67

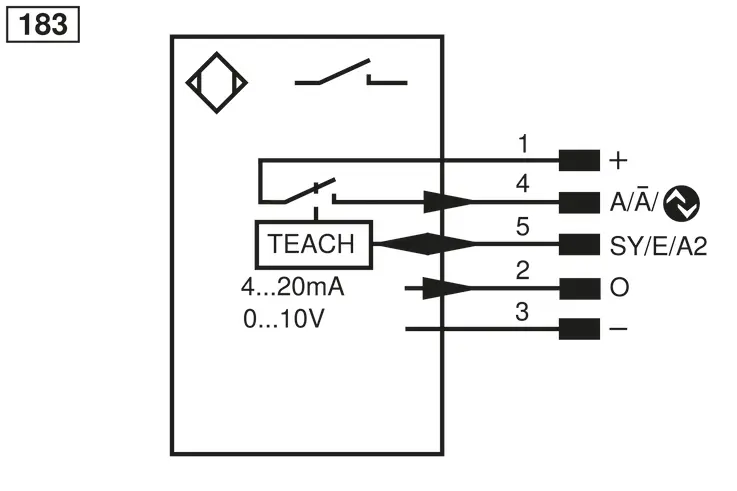

  • Connection: M12 × 1; 5-pin
  • Weight: 177 g
  • MTTFd (EN ISO 13849-1): 509.66 a
  • Scope of delivery: 1 × BEF-SET-34 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Selectable menu language: yes
  • Password Protection: yes
  • Error Output: yes
  • PNP NO: yes
  • Analog Output: yes
  • IO-Link: yes
  • Analog output: 4 to 20 mA, 0 to 10 V
  • Output: Error Output, PNP
  • Circuit: NC, NO, NC/NO
  • Other parameters: Multiplex mode, Synchronous mode, Adjustable sonic cone, Teach mode, Filter
  • Complementary Products: IO-Link Master, PNP-NPN Converter BG2V1P-N-2M, Analog Evaluation Unit AW02, Software
These ultrasonic sensors evaluate the sound reflected from the object. They can detect almost any object and are especially well suited for monitoring fill levels of liquids and bulk goods and for detecting transparent objects. The sensor detects objects regardless of material, state of matter, color or degree of transparency. The graphical display is menu-guided for easy setup of the sensors. The IO-Link interface makes parametrization and diagnosis quick and easy. The sensor can only be used in reflex mode operation.
