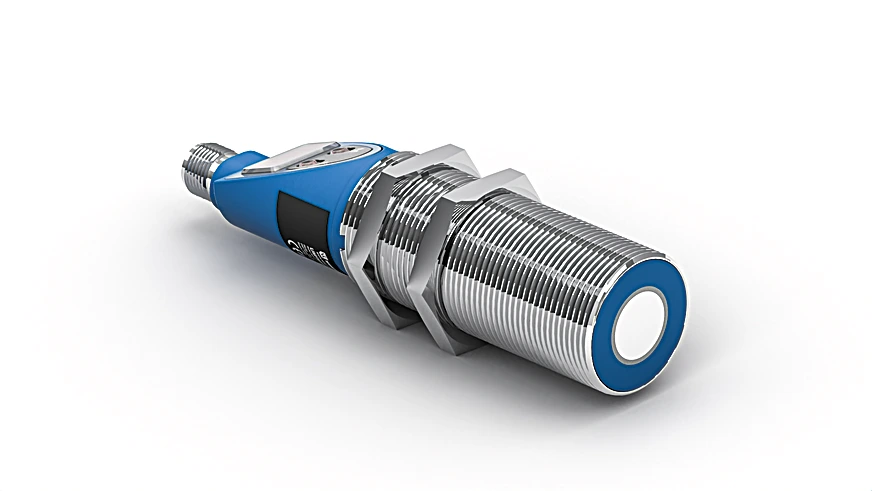

Wenglor UMF402U035 Distance Sensor

Distance Sensor.

$632.00
Part Number
  • UMF402U035
Highlights...

Features

  • Stainless steel housing
  • Digital and analog output
  • Synchronous and multiplex mode
  • Temperature drift eliminable
  • Working Range: 50 to 400 mm
  • Measuring Range: 350 mm
  • Reproducibility maximum: 1 mm
  • Linearity Deviation: 3 mm
  • Resolution: 0.1 mm
  • Ultrasonic Frequency: 300 kHz
  • Opening Angle: < 12 °
  • Service Life (T = 77°F): 100,000 h
  • Switching Hysteresis: 2 mm
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 20 Hz
  • Response Time: 25 ms
  • Temperature Range: -22°F to 140°F
  • Number of Switching Outputs: 1
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Analog Output: 0 to 10 V
  • Synchronous Mode: up to 40 sensors
  • Multiplex Mode: up to 16 sensors
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.0
  • Protection Class: III

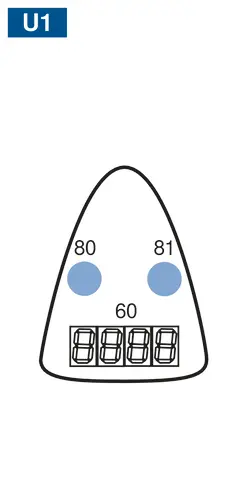

  • Setting Method: IO-Link, Menu (7-segment display)
  • Housing Material: Stainless steel, V2A (1.4305/303), Plastic, ABS
  • Sensing face: Epoxy resin/glass bubble mixture, Plastic, PBT, Silicone
  • Degree of Protection: IP67
  • Connection: M12 × 1; 5-pin
  • Weight: 134 g
  • MTTFd (EN ISO 13849-1): 727.87 a
  • Error Output: yes
  • PNP NO: yes
  • Analog Output: yes
  • IO-Link: yes
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Output: Error Output, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Filter, Multiplex mode, Adjustable sonic cone, Synchronous mode, Teach mode
  • Complementary Products: Analog Evaluation Unit AW02, IO-Link converter, IO-Link Master, PNP-NPN Converter BG2V1P-N-2M, Software, Baffle Plate Z0023, Z0024
These ultrasonic sensors evaluate the sound reflected from the object. They can detect almost any object and are especially well suited for monitoring fill levels of liquids and bulk goods and for detecting transparent objects. The sensor detects objects regardless of material, state of matter, color or degree of transparency. The sensors can be easily adjusted thanks to the 4-digit 7-segment display. The IO-Link interface makes parametrization and diagnosis quick and easy. The sensor can only be used in reflex mode operation.
