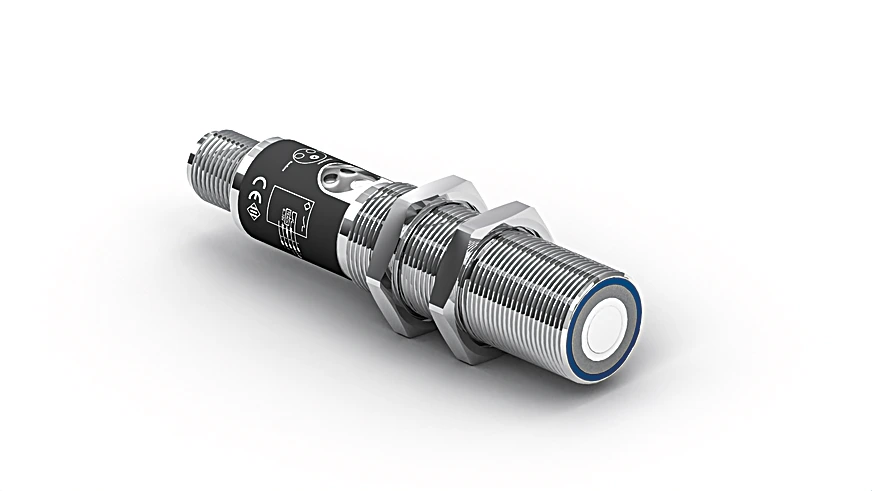

Wenglor UMD402U035 Distance Sensor

Distance Sensor.

$429.00
Part Number
  • UMD402U035
Highlights...

Features

  • Stainless steel housing
  • Synchronous mode
  • Digital and analog output
  • Temperature drift eliminable
  • Working Range: 50 to 400 mm
  • Measuring Range: 350 mm
  • Reproducibility maximum: 1 mm
  • Linearity Deviation: 5 mm
  • Resolution: 1 mm
  • Ultrasonic Frequency: 300 kHz
  • Opening Angle: < 12 °
  • Service Life (T = 77°F): 100,000 h
  • Switching Hysteresis: 2 mm
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 20 Hz
  • Response Time: 25 ms
  • Temperature Range: -22°F to 140°F
  • Number of Switching Outputs: 1
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Analog Output: 0 to 10 V
  • Synchronous Mode: up to 40 sensors
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.0
  • Protection Class: III
  • Setting Method: IO-Link, Teach input (for switching output), Teach-in (for switching output)
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Sensing face: Epoxy resin/glass bubble mixture, Plastic, PBT, Silicone
  • Full Encapsulation: yes
  • Degree of Protection: IP67

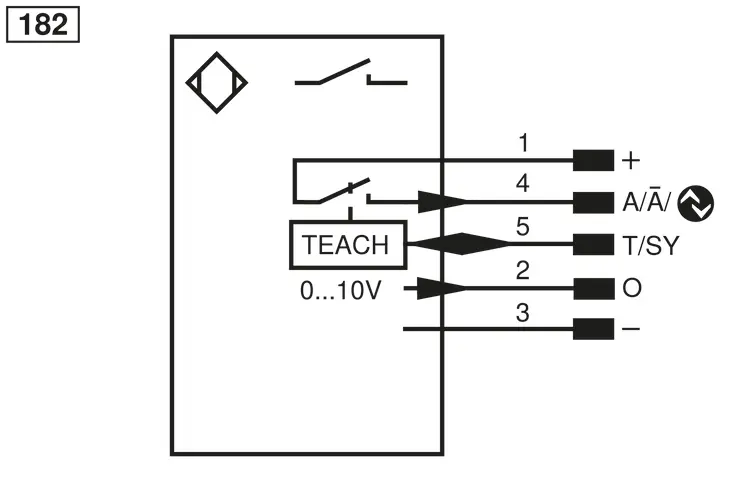

  • Connection: M12 × 1; 5-pin
  • Weight: 68 g
  • MTTFd (EN ISO 13849-1): 828.67 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • PNP NO/NC switchable: yes
  • Analog Output: yes
  • IO-Link: yes
  • Circuit: NC, NC/NO, NO
  • Other parameters: Synchronous mode
  • Complementary Products: Analog Evaluation Unit AW02, IO-Link converter, IO-Link Master, PNP-NPN Converter BG2V1P-N-2M, Software, Baffle Plate Z0021, Z0022
These ultrasonic sensors evaluate the sound reflected from the object. They are capable of detecting almost any object, regardless of material and condition. Thanks to the innovative transducer, this sensor has a particularly wide sonic cone at close range. This means that many different kinds of pieces can be reliably detected on conveyor belts. The sensor can only be used in reflex mode operation.
