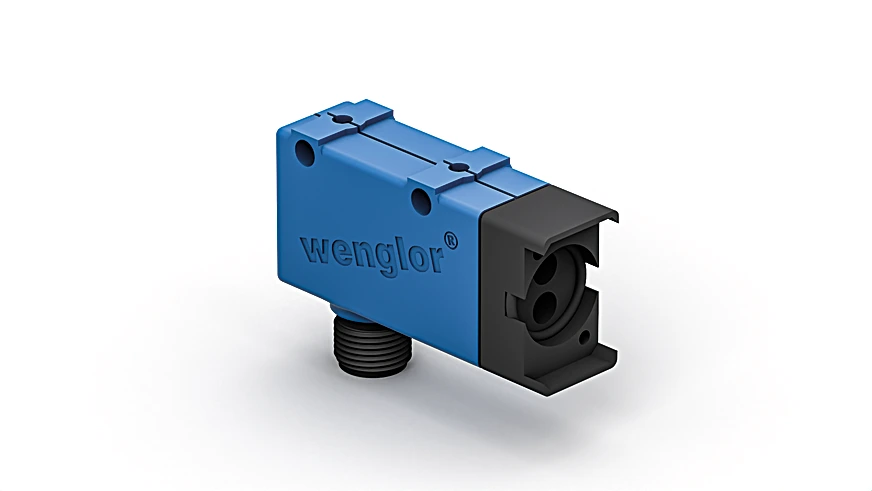

Wenglor UM55PCT2 Fiber-optic amplifier

Features

• Switching frequency: 1 kHz
• Teach-in, external teach-in
• Range: 500 mm
• Switching Hysteresis: < 15 %
• Light Source: Infrared Light
• Wavelength: 880 nm
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 53.6°Furrent Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 1 kHz
• Response Time: 500 µs
• On-/Off-Delay (RS-232): 0 to 5 s
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Teach Mode: NT, MT
• Protection Class: III
• Setting Method: Teach-In
• Housing Material: Plastic, PBT
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection: M12 × 1; 4-pin
• Weight: 27 g
• Scope of delivery: 1 × BEF-SET-08 mounting set, 1 × initial start-up instructions, 1 × sensor
• External teach-in input: yes
• PNP NO/NC switchable: yes
• RS-232 with Adapterbox: yes
• Circuit: NC, NC/NO, NO
• Other parameters: Off-delay, On-delay
• Complementary Products: Adapterbox A232, Glass Fiber-Optic Cable, PNP-NPN Converter BG2V1P-N-2M, Software
