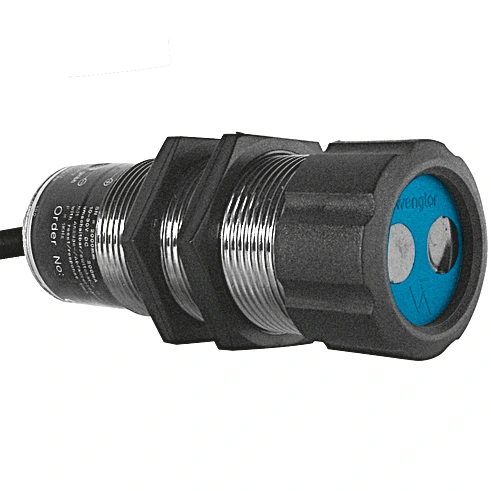

Wenglor UF66VBFS602-P16 Fiber-optic amplifier

Fiber-optic amplifier.

$1,203.00
Part Number
  • UF66VBFS602-P16
Highlights...

Features

  • Recognition of small parts
  • Switching frequency: 5 kHz
  • Adaptable for glass fiber-optic cable
  • Range: 1,000 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 53.6°Furrent Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 5 kHz
  • Response Time: 100 µs
  • Temperature Drift: < 10 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

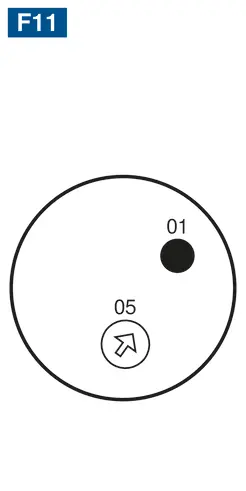

  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP65

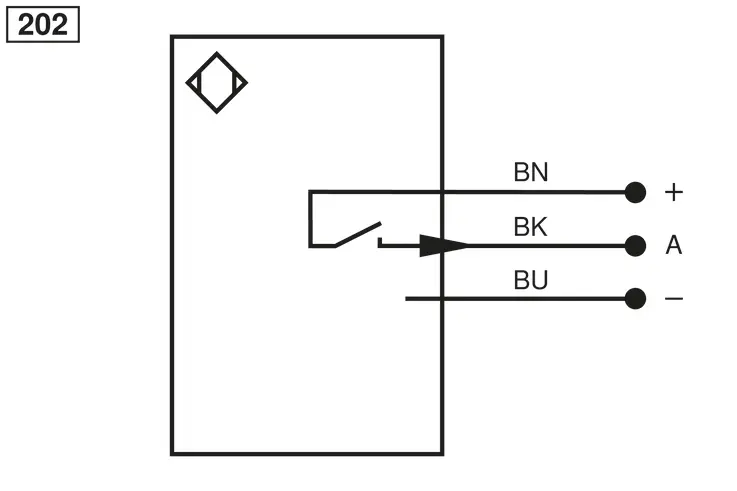

  • Connection: Cable; 3-wire
  • Cable length (L): 4 m
  • Wire cross-section: 0.5 mm²
  • Weight: 372 g
  • Scope of delivery: 1 × sensor, 1 × UEM30ME-01 sleeve nut, 2 × MUTTER-M30-E001 hex nuts
  • PNP NO: yes
  • External Information: Off-Delay: 150 ms
  • Complementary Products: Glass Fiber-Optic Cable, Glass Disc GS2
These sensors are equipped for use with glass fiber optic cables but can be used with or without one. The transmitter and receiver are located in a single housing. The sensor evaluates transmitted light reflected back from the object and the output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
