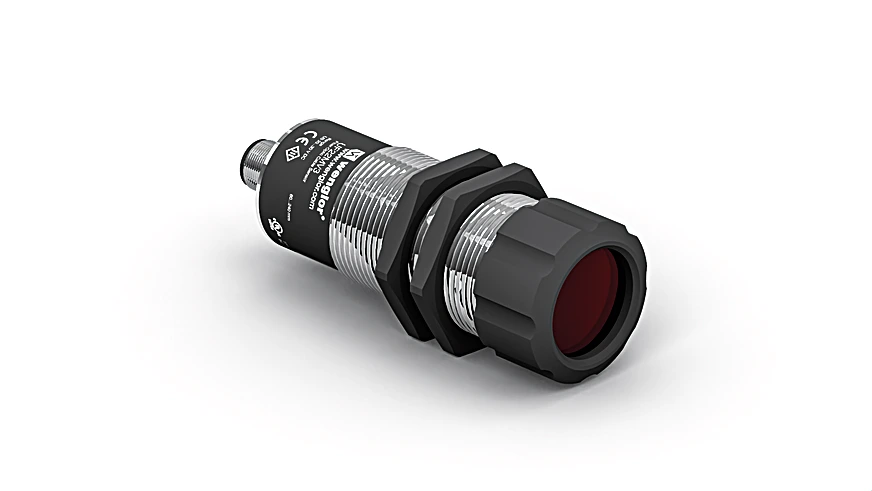

Wenglor UF66MG3 Fiber-optic amplifier

Fiber-optic amplifier.

$578.00
Part Number
  • UF66MG3
Highlights...

Features

  • Linear output signal proportional to distance
  • Usable with or without glass fiber-optic cable
  • Analog output (0 to 10 V DC)
  • Functional principle: Reflex mode
  • Working Range: 100 to 1,000 mm
  • Measuring Range: 900 mm
  • Resolution: 20 mm
  • Linearity: 5 %
  • Light Source: Infrared Light
  • Wavelength: 880 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 12 °
  • Supply Voltage: 20 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 30 Hz
  • Response Time: 15 ms
  • Temperature Drift: 1 mm/K
  • Temperature Range: 14°F to 140°F
  • Analog Output: 0 to 10 V
  • Output Resistance Analog Output: 1 kOhm
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Protection Class: III

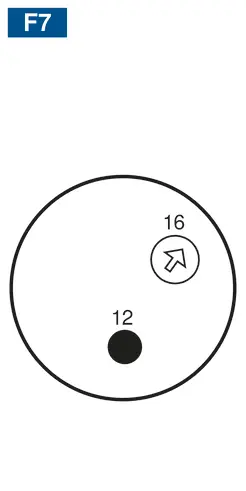

  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Optic Cover: Glass
  • Full Encapsulation: yes
  • Degree of Protection: IP65

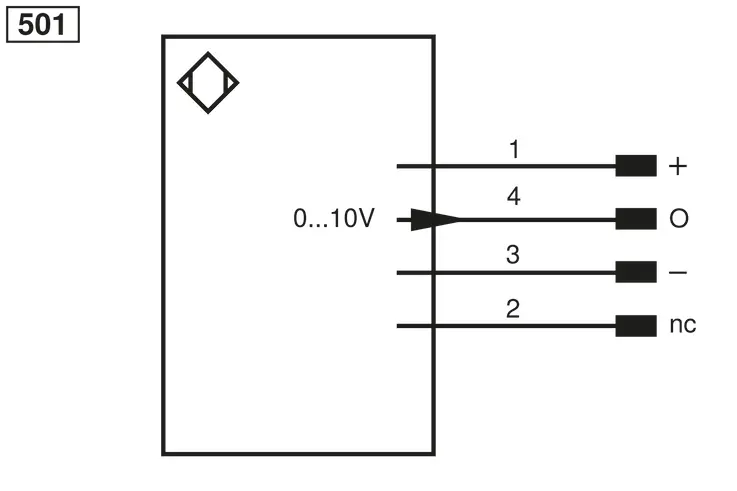

  • Connection: M12 × 1; 4-pin
  • Weight: 138 g
  • Scope of delivery: 1 × sensor, 1 × UEM30KU-01 sleeve nut
  • Analog Output: yes
  • Complementary Products: Glass Fiber-Optic Cable, IO-Link converter
This sensor is suitable for analog distance measurements and can be used with or without a glass fiber cable. The output voltage is dependent upon the brightness of the object to be measured, as bright objects reflect transmitted light better than dark objects.
