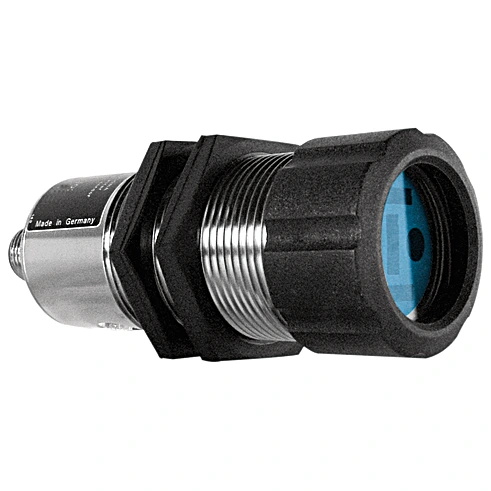

Wenglor UF44PA3S365 Fiber-optic amplifier

Features

• Recognition of color markings under restrictive space conditions
• Adaptable for glass fiber-optic cable
• Range: 400 mm
• Switching Hysteresis: < 15 %
• Light Source: Blue Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 53.6°Furrent Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 150 Hz
• Response Time: 3,300 µs
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III

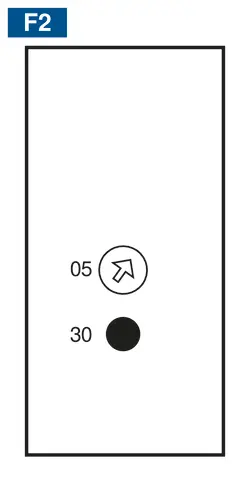

• Setting Method: Potentiometer
• Housing Material: Brass, nickel-plated
• Full Encapsulation: yes
• Degree of Protection: IP65

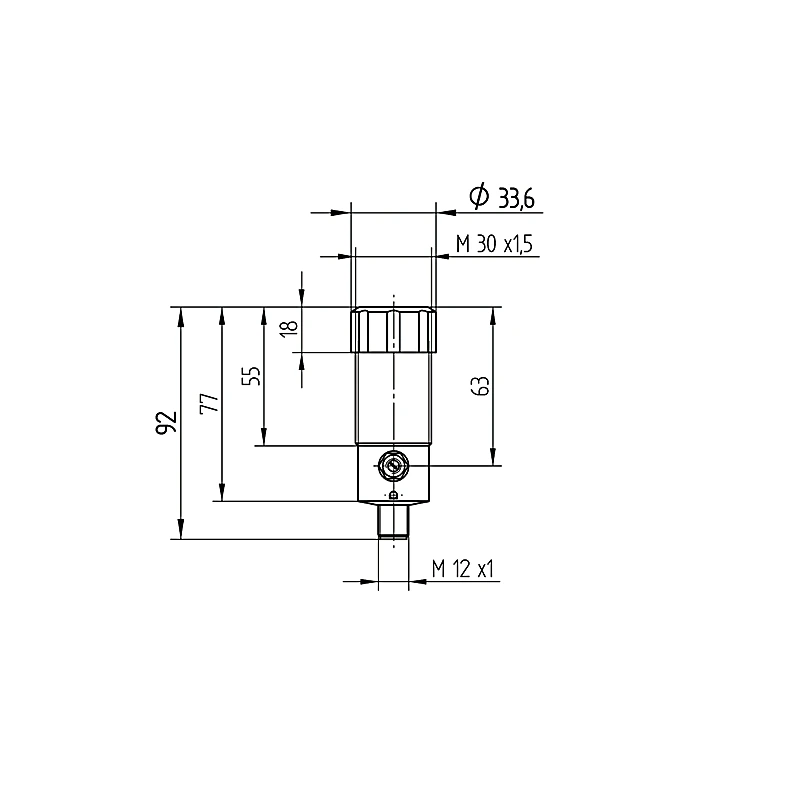

• Connection: M12 × 1; 4-pin
• Weight: 153 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor, 1 × UEM30KU-01 sleeve nut, 2 × MUTTER-M30-E001 hex nuts
• PNP NC, PNP NO: yes
• Circuit: NC, NC+NO, NO
• Complementary Products: Glass Fiber-Optic Cable, Glass Disc GS2, PNP-NPN Converter BG2V1P-N-2M
