Wenglor UF22MV3 Fiber-optic amplifier

Features

• Analog output (0 to 10 V DC)
• Linear output signal proportional to obstruction of glass fiber
• Adjustable slope
• Functional principle: Through-beam mode
• Working Range: 60 to 240 mm
• Measuring Range: 180 mm
• Resolution: 2 %
• Light Source: Red Light
• Wavelength: 660 nm
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 12 °
• Supply Voltage: 20 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 50 Hz
• Response Time: 10 ms
• Temperature Drift: 3 %
• Temperature Range: 14°F to 140°F
• Analog Output: 0 to 10 V
• Output Resistance Analog Output: 1 kOhm
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III

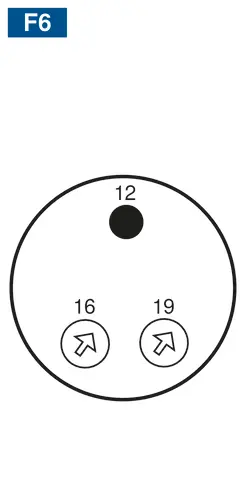

• Setting Method: Potentiometer
• Housing Material: Brass, nickel-plated
• Optic Cover: Glass
• Full Encapsulation: yes
• Degree of Protection: IP65

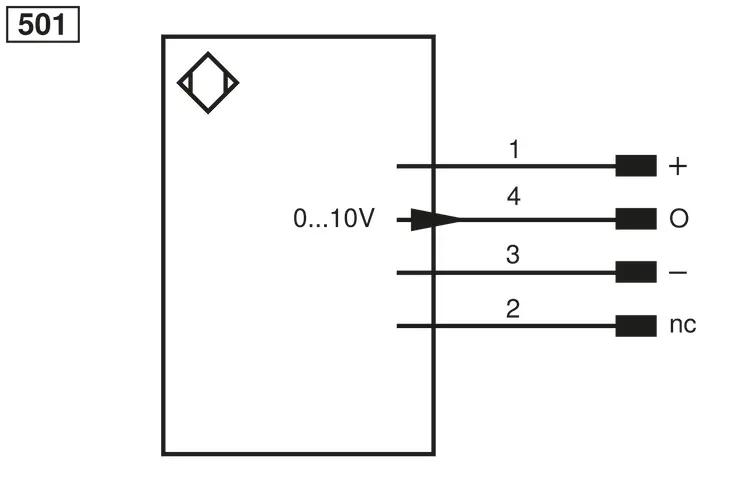

• Connection: M12 × 1; 4-pin
• Weight: 139 g
• MTTFd (EN ISO 13849-1): 1,580.26 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor, 1 × UEM30KU-01 sleeve nut, 2 × MUTTER-M30-E001 hex nuts
• Analog Output: yes
• Complementary Products: Glass Fiber-Optic Light Curtain, IO-Link converter
