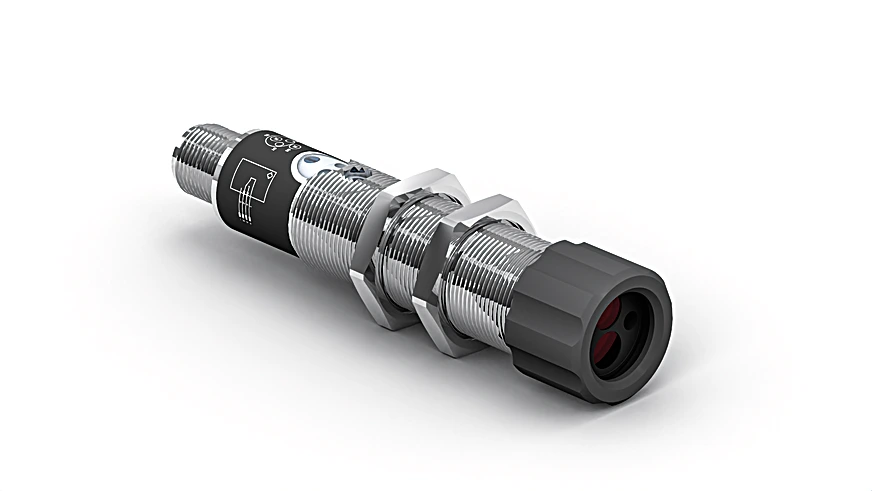

Wenglor UC88PCV3 Fiber-optic amplifier

Features

• Stainless steel housing
• Adaptable for glass fiber-optic cables: reflex and through-beam mode
• Very large detection range
• Adjustable detection range
• Range: 2,000 mm
• Switching Hysteresis: < 15 %
• Light Source: Infrared Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 53.6°Furrent Consumption (Ub = 24 V): < 50 mA
• Switching Frequency: 500 Hz
• Response Time: 1 ms
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• PNP Contamination Output/Switching Current: 50 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III

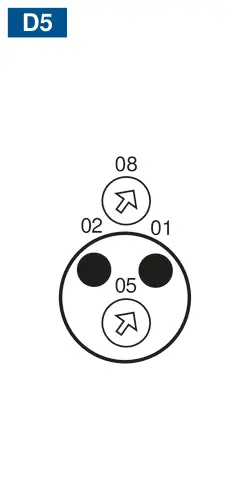

• Setting Method: Potentiometer
• Housing Material: Stainless steel, V2A (1.4305/303)
• Optic Cover: Plastic, PC
• Full Encapsulation: yes
• Degree of Protection: IP67

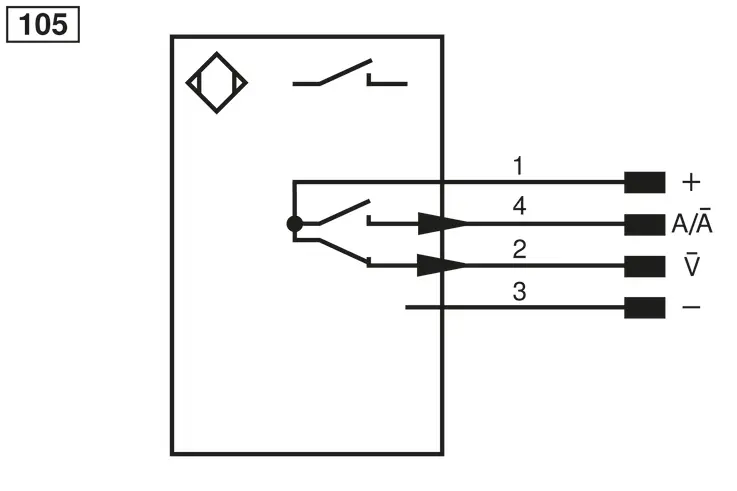

• Connection: M12 × 1; 4-pin
• Weight: 45 g
• MTTFd (EN ISO 13849-1): 1,854.34 a
• Scope of delivery: 1 × BEF-SET-11 mounting set, 1 × initial start-up instructions, 1 × sensor
• PNP NO: yes
• Circuit: NC, NC/NO, NO
• Complementary Products: Glass Fiber-Optic Cable, PNP-NPN Converter BG2V1P-N-2M
