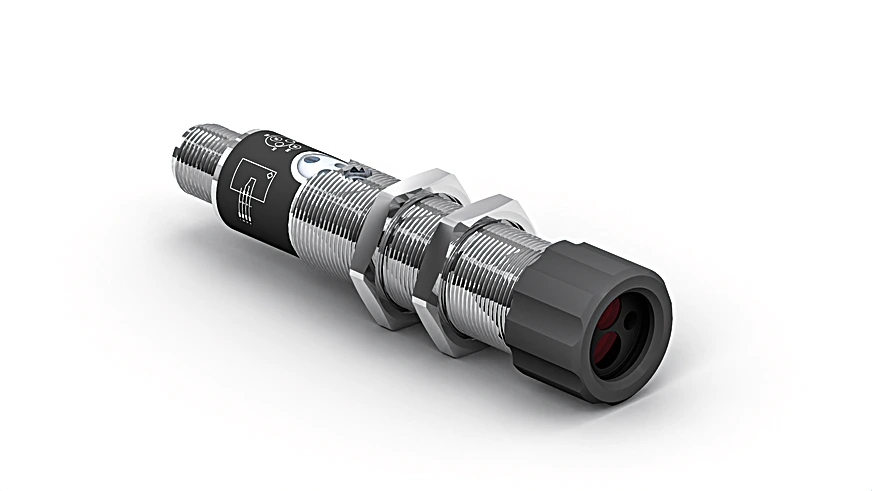

Wenglor UC66PA3 Fiber-optic amplifier

Fiber-optic amplifier.

$317.00
Part Number
  • UC66PA3
Highlights...

Features

  • Stainless steel housing
  • Adaptable for glass fiber-optic cables: reflex and through-beam mode
  • Large detection range
  • Adjustable detection range
  • Range: 1,000 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 53.6°Furrent Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 1 kHz
  • Response Time: 500 µs
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

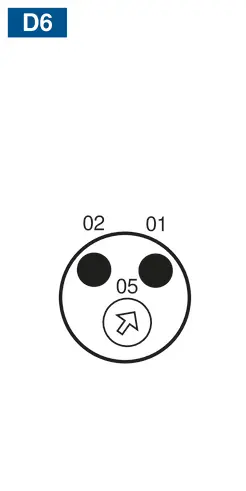

  • Setting Method: Potentiometer
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Optic Cover: Plastic, PC
  • Full Encapsulation: yes
  • Degree of Protection: IP67

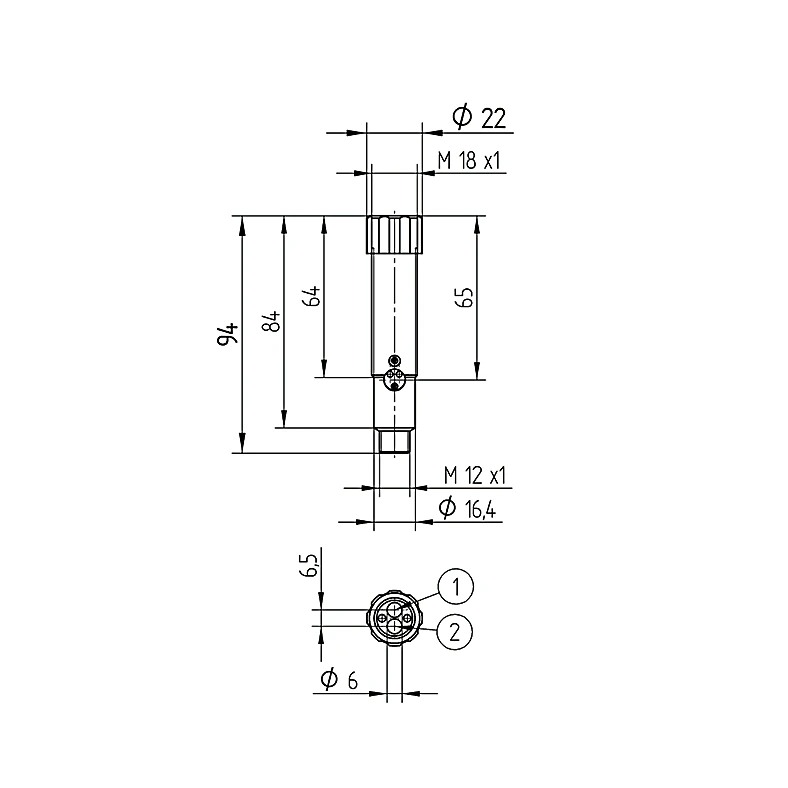

  • Connection: M12 × 1; 4-pin
  • Weight: 46 g
  • MTTFd (EN ISO 13849-1): 1,948.21 a
  • Scope of delivery: 1 × BEF-SET-11 mounting set, 1 × initial start-up instructions, 1 × sensor

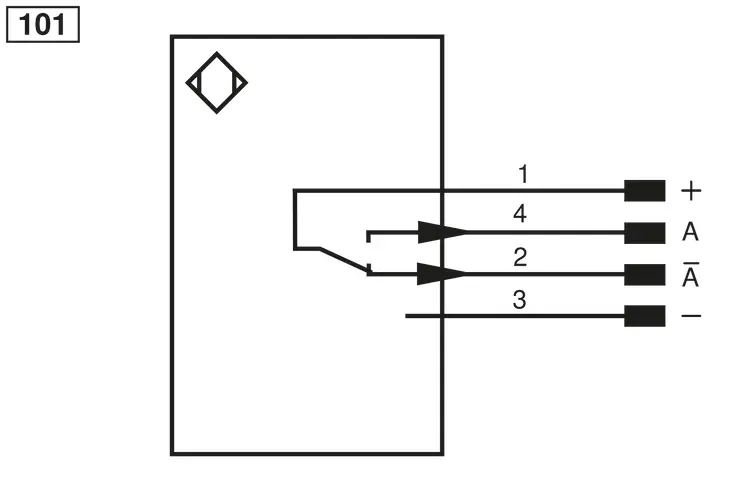

  • PNP NC, PNP NO: yes
  • Circuit: NC, NC+NO, NO
  • Complementary Products: Glass Fiber-Optic Cable, PNP-NPN Converter BG2V1P-N-2M
These sensors are equipped for use with glass fiber optic cables but can be used with or without one. The transmitter and receiver are located in a single housing. The sensor evaluates transmitted light reflected back from the object and the output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
