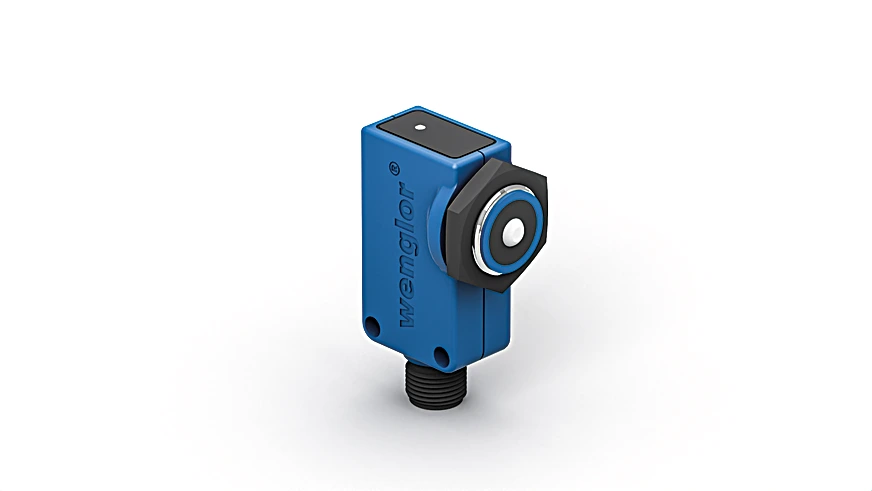

Wenglor U1RT004 Distance Sensor

Distance Sensor.

$365.00
Part Number
  • U1RT004
Highlights...

Features

  • IO-Link version 1.1

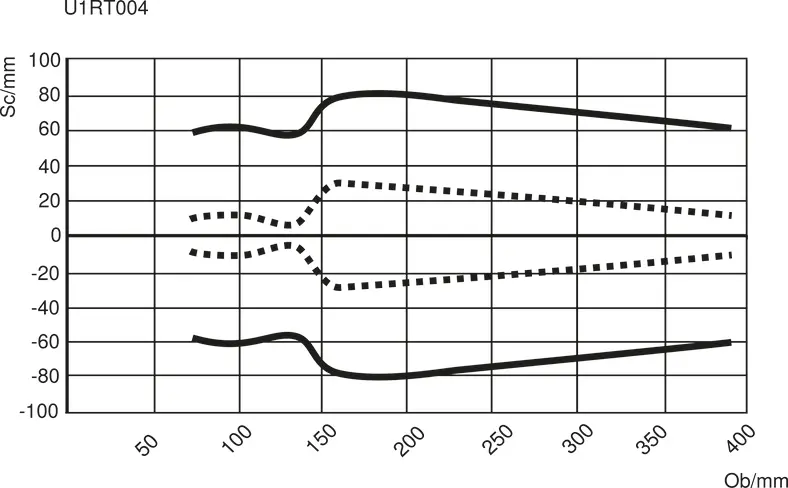

  • Wide sonic cone at close range
  • External teach-in (tamper protection)
  • Temperature range: –30…140°F
  • Working range, reflex sensor: 80 to 400 mm
  • Reproducibility maximum: 1 mm
  • Linearity Deviation: 3 mm
  • Resolution: 0.5 mm
  • Ultrasonic Frequency: 300 kHz
  • Opening Angle: < 14 °
  • Service Life (T = 77°F): 100,000 h
  • Switching Hysteresis: 2 mm
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 30 Hz
  • Switching frequency, reflex sensor: 20 Hz
  • Response Time: 17 ms
  • Response time, reflex sensor: 25 ms
  • Temperature Range: -22°F to 140°F
  • Number of Switching Outputs: 1
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Data Storage: yes
  • Protection Class: III
  • Setting Method: IO-Link
  • Housing Material: Plastic, PBT, Plastic, ABS, Brass, nickel-plated
  • Sensing face: Epoxy resin/glass bubble mixture, Plastic, PBT, Plastic, PU
  • Degree of Protection: IP67, IP68

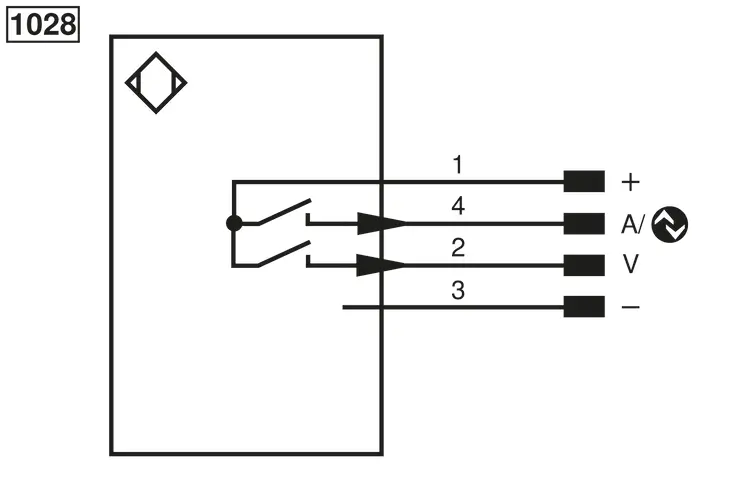

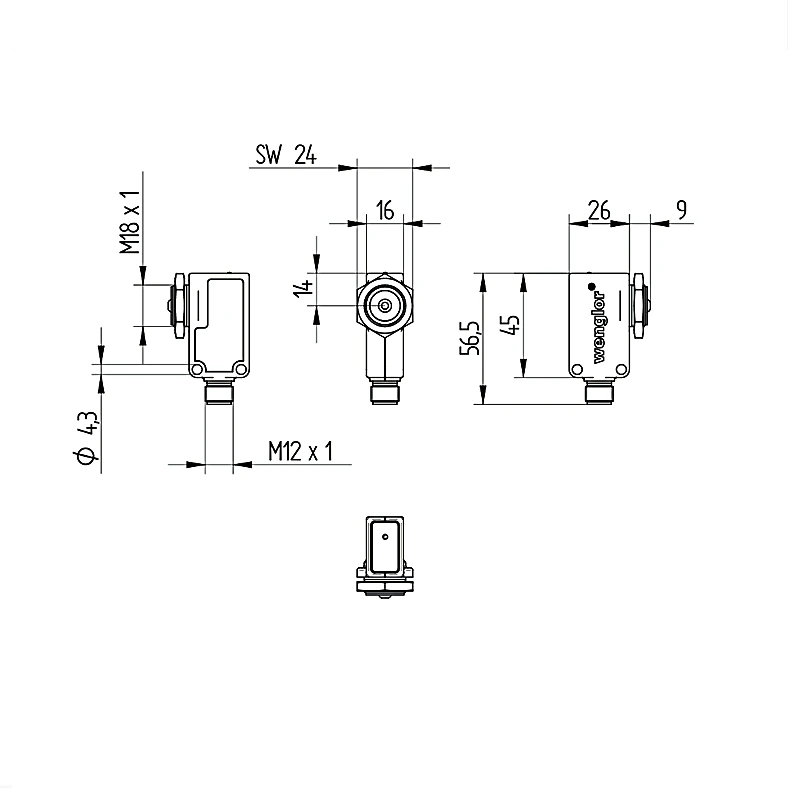

  • Connection: M12 × 1; 4-pin
  • Weight: 29 g
  • MTTFd (EN ISO 13849-1): 1,369.42 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • PNP NO: yes
  • IO-Link: yes
  • Output: NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Teach mode
  • Complementary Products: IO-Link Master
These ultrasonic sensors evaluate the sound reflected from the object. They are capable of detecting almost any object, regardless of material and condition. Thanks to the innovative transducer, this sensor has a particularly wide sonic cone at close range. This means that many different kinds of pieces can be reliably detected on conveyor belts. The sensor can only be used in reflex mode operation.
