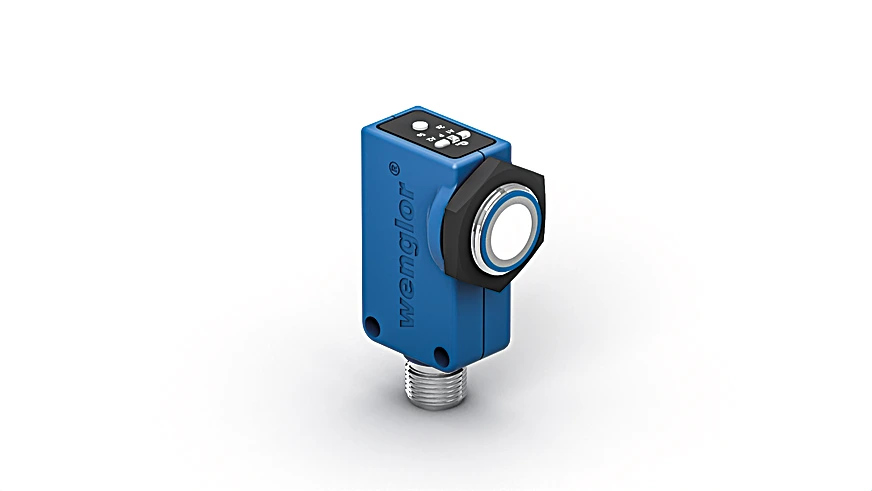

Wenglor U1RT003 Distance Sensor

Distance Sensor.

$381.00
Part Number
  • U1RT003
Highlights...

Features

  • 2 mutually independent switching outputs
  • IO-Link version 1.1
  • Reflex and through-beam operation mode are possible
  • Temperature range: –30…140°F

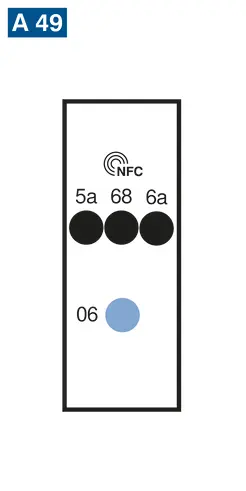

  • Wireless settings via NFC

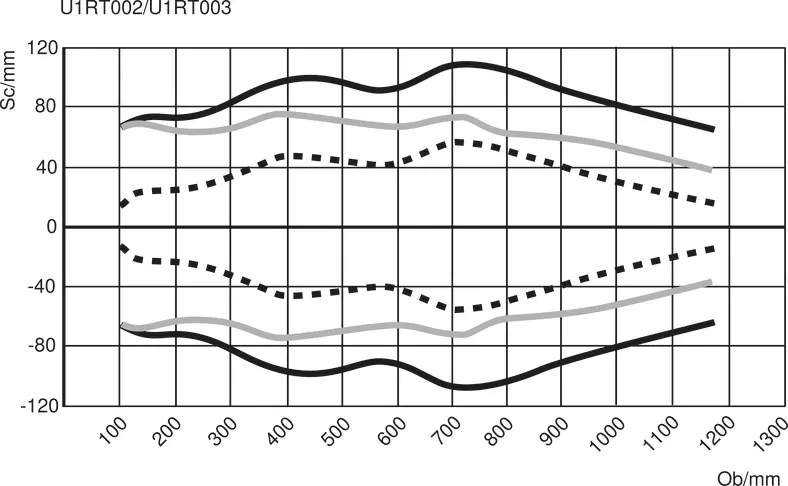

  • Working range, reflex sensor: 100 to 1,200 mm
  • Working range, through-beam sensor: 100 to 2,000 mm
  • Reproducibility maximum: 5 mm
  • Linearity Deviation: 2 mm
  • Resolution: 1 mm
  • Ultrasonic Frequency: 240 kHz
  • Opening Angle: < 12 °
  • Service Life (T = 77°F): 100,000 h
  • Switching Hysteresis: 1 % *
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching frequency, reflex sensor: 7 Hz
  • Switching frequency, through-beam sensor: 7 Hz
  • Response time, reflex sensor: 72 ms
  • Response time, through-beam sensor: 72 ms
  • Temperature Range: -22°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Synchronous Mode: up to 40 sensors
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1/NFC
  • Data Storage: yes
  • Protection Class: III
  • Setting Method: IO-Link, NFC, Teach input (for switching output), Teach-in (for switching output)
  • Housing Material: Plastic, PBT, Plastic, ABS, Brass, nickel-plated
  • Sensing face: Epoxy resin/glass bubble mixture, Plastic, PBT, Silicone
  • Degree of Protection: IP67, IP68

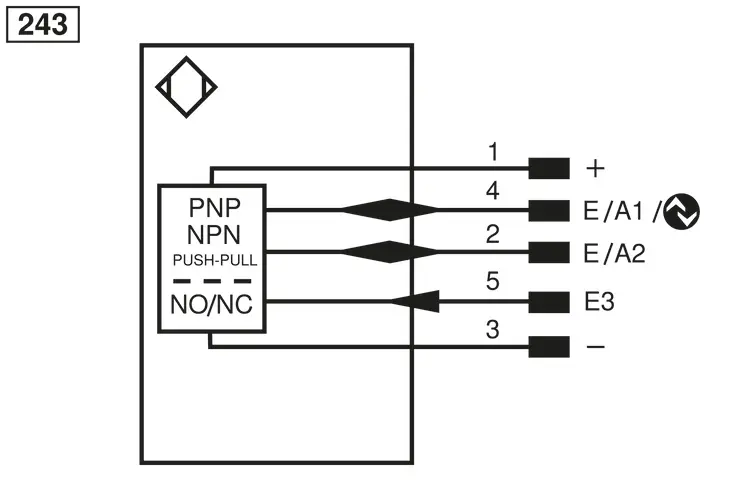

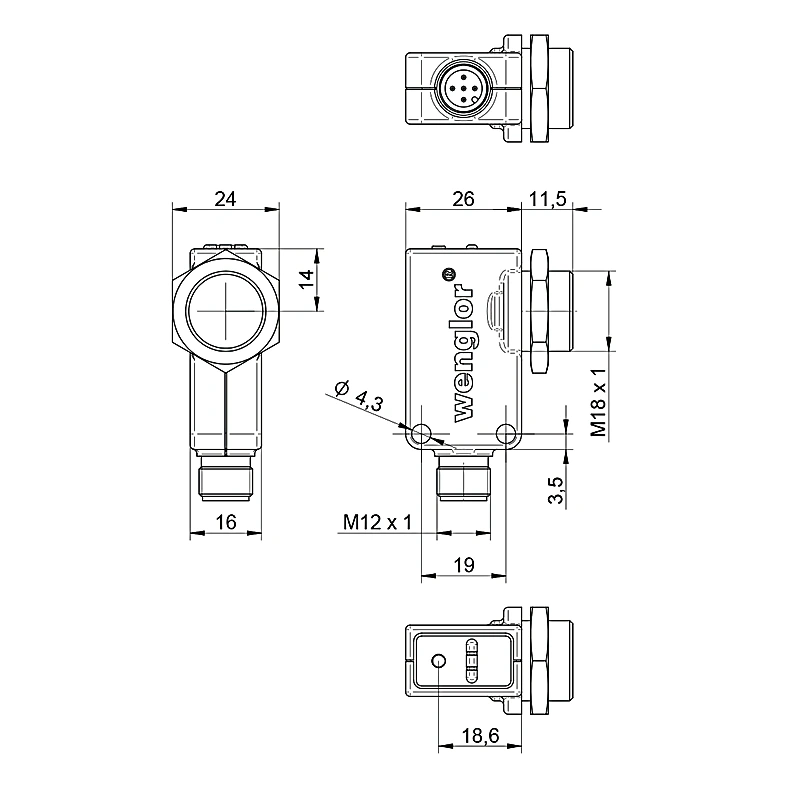

  • Connection: M12 × 1; 5-pin
  • Weight: 29 g
  • MTTFd (EN ISO 13849-1): 1,558.4 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • NPN NO: yes
  • IO-Link: yes
  • Output: NPN, PNP, Error Output
  • Circuit: NC, NC/NO, NO
  • Other parameters: Adjustable sonic cone, Through-beam mode, Synchronous mode, Teach mode, Filter, Unit of measure
  • Complementary Products: IO-Link Master
These ultrasonic sensors evaluate the sound reflected from the object. They can detect almost any object and are especially well suited for monitoring fill levels of liquids and bulk goods and for detecting transparent objects, regardless of material, state of matter, color or degree of transparency. The measured value can be read out via IO-Link, and the sensor can be adapted as needed to the application. Its construction saves space when installed on conveyor lines. The sensor can be used in reflex mode operation and as an ultrasonic through-beam sensor.
