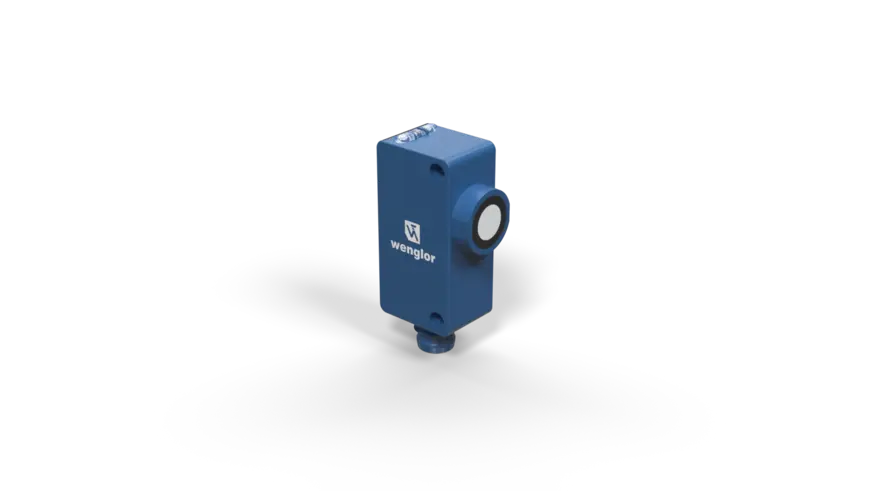

Wenglor U1KT002 Distance Sensor

Distance Sensor.

$358.00
Part Number
  • U1KT002
Highlights...

Features

  • 2 mutually independent switching outputs
  • Miniature design
  • Ready for Industrie 4.0 with IO-Link version 1.1
  • Reflex and through-beam operation mode are possible

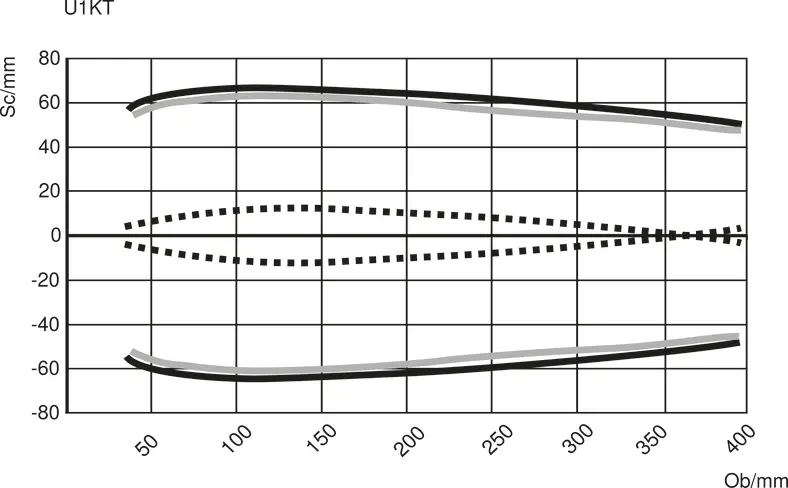

  • Working range, reflex sensor: 30 to 400 mm
  • Working range, through-beam sensor: 30 to 800 mm
  • Setting Range: 30 to 400 mm
  • Reproducibility maximum: 4 mm
  • Linearity Deviation: 4 mm
  • Resolution: 0.5 mm
  • Ultrasonic Frequency: 325 kHz
  • Opening Angle: < 12 °
  • Service Life (T = 77°F): 100,000 h
  • Switching Hysteresis: 1 % *
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching frequency, reflex sensor: 30 Hz
  • Switching frequency, through-beam sensor: 70 Hz
  • Response time, reflex sensor: 17 ms
  • Response time, through-beam sensor: 8 ms
  • Temperature Range: -22°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Synchronous Mode: up to 40 sensors
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Data Storage: yes
  • Protection Class: III
  • Setting Method: Teach-in (for switching output), IO-Link
  • Housing Material: Plastic, PC, Plastic, PC/ABS
  • Sensing face: Plastic, PC/ABS, Plastic, PU, Epoxy resin/glass bubble mixture
  • Degree of Protection: IP68

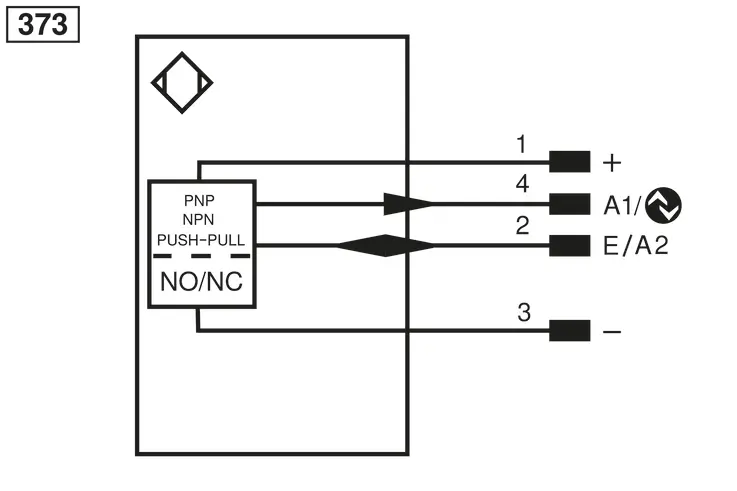

  • Connection: M8 × 1; 4-pin
  • Weight: 6 g
  • MTTFd (EN ISO 13849-1): 1,106.71 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • NPN NO: yes
  • Programmable error output: yes
  • IO-Link: yes
  • Output: Error Output, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Filter, Adjustable sonic cone, Through-beam mode, Adjustable sensor mode, Synchronous mode, Teach mode
  • Complementary Products: IO-Link Master, Software
These ultrasonic sensors evaluate the sound reflected from the object. They are capable of detecting almost any object, regardless of material and condition. As such, they are especially well suited for monitoring fill levels of liquids and bulk goods and for detecting transparent objects. The measured value can be read out via IO-Link, and the sensor can be adapted as needed to the application. The sensor can be used in reflex mode operation and as an ultrasonic through-beam sensor.
