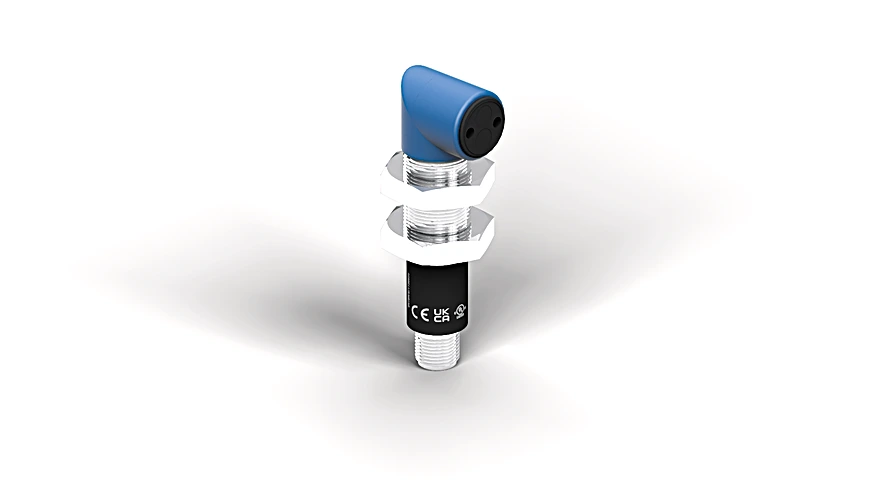

Wenglor TW66NA3 Reflex Sensor Energetic

Reflex Sensor Energetic.

$216.00
Part Number
  • TW66NA3
Highlights...

Features

  • Stainless steel housing
  • Adjustable detection range
  • Large detection range
  • Range: 1,000 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared Light
  • Wavelength: 880 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 12 °
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 250 Hz
  • Response Time: 2 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • NPN Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

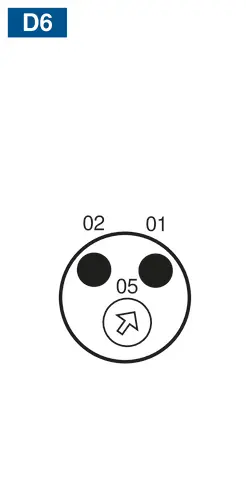

  • Setting Method: Potentiometer
  • Housing Material: Plastic, PBT, Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67

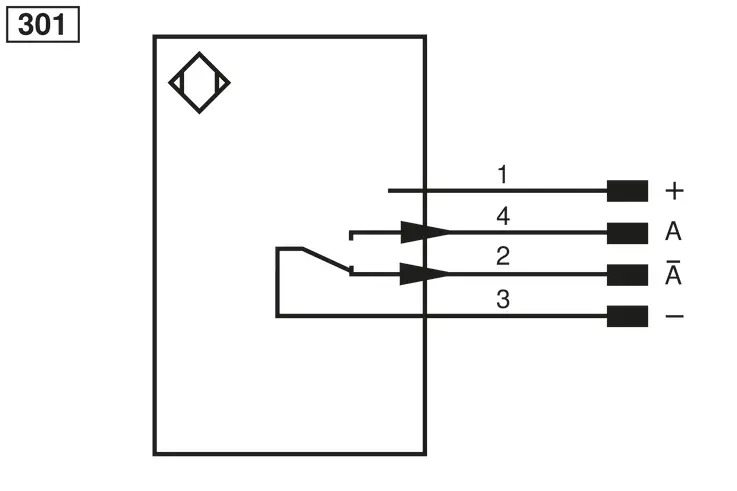

  • Connection: M12 × 1; 4-pin
  • Weight: 79 g
  • MTTFd (EN ISO 13849-1): 3,002.46 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • NPN NC, NPN NO: yes
  • Circuit: NC, NC+NO, NO
The transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
