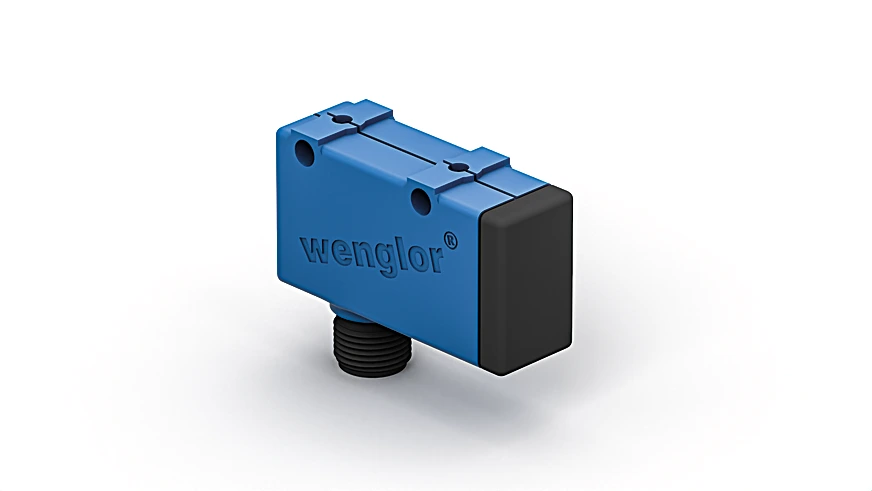

Wenglor TM22PA2 Reflex Sensor Energetic

Reflex Sensor Energetic.

$205.00
Part Number
  • TM22PA2
Highlights...

Features

  • Compact housing
  • Adjustable detection range
  • Range: 200 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 12 °
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 1,500 Hz
  • Response Time: 330 µs
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

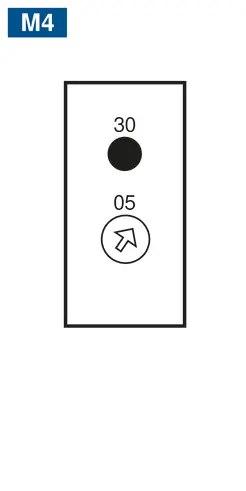

  • Setting Method: Potentiometer
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 25 g
  • MTTFd (EN ISO 13849-1): 2,779.93 a
  • Scope of delivery: 1 × sensor
  • PNP NC, PNP NO: yes

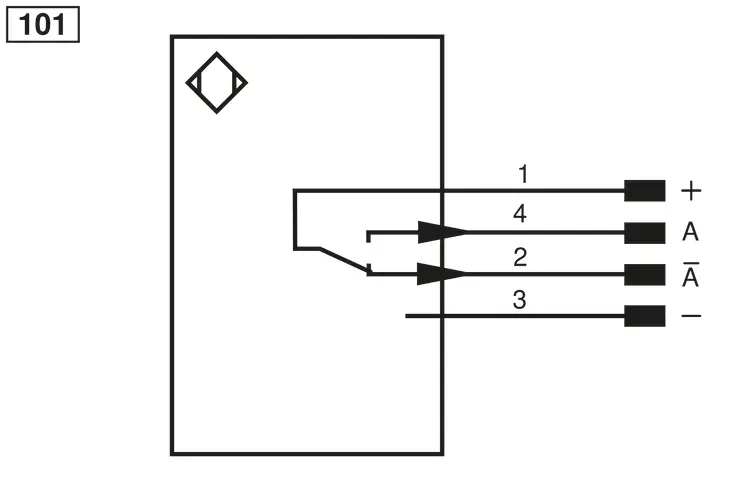

  • Circuit: NC, NC+NO, NO
  • Complementary Products: PNP-NPN Converter BG2V1P-N-2M
The transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
