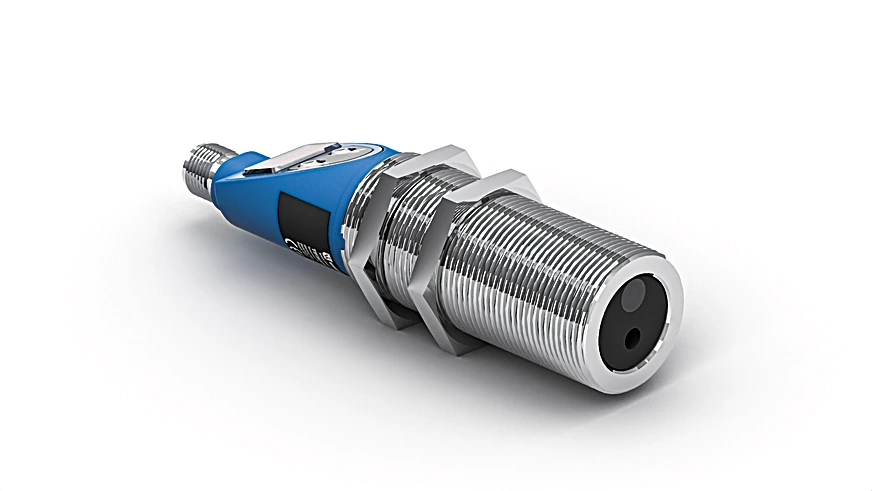

Wenglor TIF352U0089 Temperature Sensor for Contactless Measurement

Temperature Sensor for Contactless Measurement.

$969.00
Part Number
  • TIF352U0089
Highlights...

Features

  • Analog output
  • Degree of emission adjustable or teachable from 0,1 to 1
  • Integrated laser alingment aid
  • Target performance-value comparison through 2 adjustable switching outputs
  • Temperature Measurement Range: -13°F to 662°F
  • Measuring Range: 707°F
  • Resolution: 32.18°F
  • Spectral Sensitivity: 8 to 14 µm
  • Linearity Deviation (-13°F < Tobj ≤ 662°F): 3.4 K
  • Linearity Deviation (-4°F < Tobj ≤ 392°F): 0.7 K
  • Reproducibility: 2.5 K
  • Switching Hysteresis: 1 K

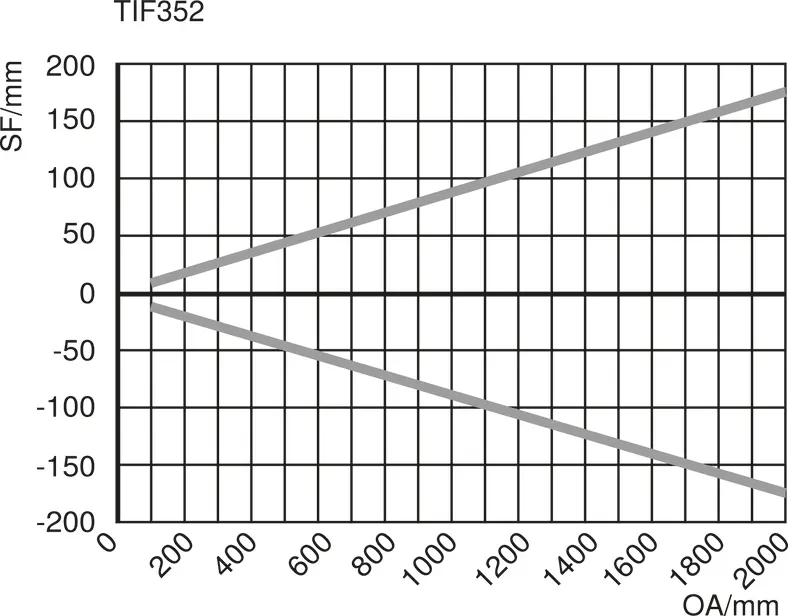

  • Opening Angle: 10 °
  • Degree of Emission: 0.1 to 1
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 60 mA
  • Switching Frequency: 15 Hz
  • Response Time: 0.065 to 30 s
  • Temperature Drift (-4°F < Tu ≤ 32°F): < 33.134°F/K
  • Temperature Drift (32°F < Tu ≤ 140°F): < 32.252°F/K
  • Temperature Range: -4°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output/Switching Current: 200 mA
  • Analog Output: 0 to 10 V
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: RS-232
  • Protection Class: III
  • Setting Method: Menu
  • Housing Material: Stainless steel, V2A (1.4305/303), Plastic, ABS
  • Degree of Protection: IP67
  • Connection: M12 × 1; 8-pin
  • Weight: 95 g
  • MTTFd (EN ISO 13849-1): 712.08 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M30-E003 hex nut, 1 × sensor
  • Analog Output: yes
  • Switchable to NC/NO: yes
  • Configurable as PNP/NPN: yes
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Output: NPN, PNP

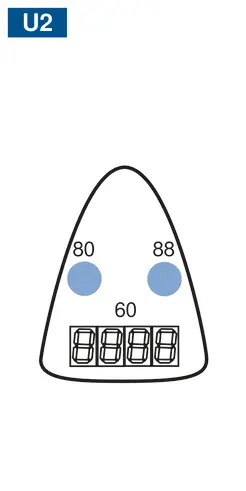

This temperature sensor has a spectral sensitivity of 8 to 14 µm. It receives the emitted radiation within this range and processes this to output signals. Temperatures from –25 to 662°F can be measured. Via the 4-digit 7-segment display the sensor can be adjusted easily and the measured temperature can be displayed.
