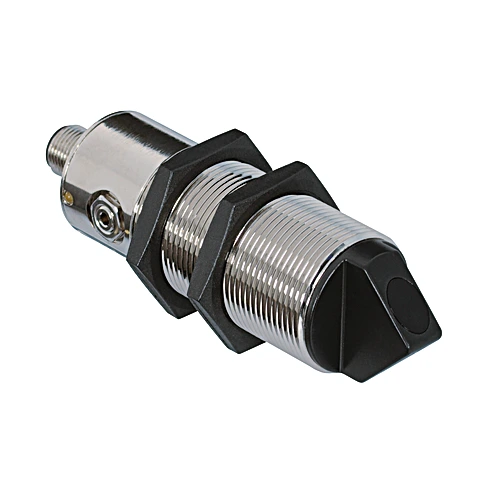

Wenglor TF55PA3S172 Reflex Sensor Energetic

Reflex Sensor Energetic.

$470.00
Part Number
  • TF55PA3S172
Highlights...

Features

  • For applications in dusty and moist environments
  • No optical crosstalk
  • Range: 500 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 8 °
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 200 Hz
  • Response Time: 2,500 µs
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

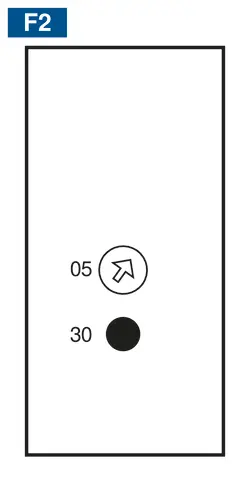

  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP65
  • Connection: M12 × 1; 4-pin
  • Weight: 119 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M30-E002 hex nut, 1 × sensor
  • PNP NC, PNP NO: yes
  • Circuit: NC, NC+NO, NO
  • Complementary Products: PNP-NPN Converter BG2V1P-N-2M
The transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
