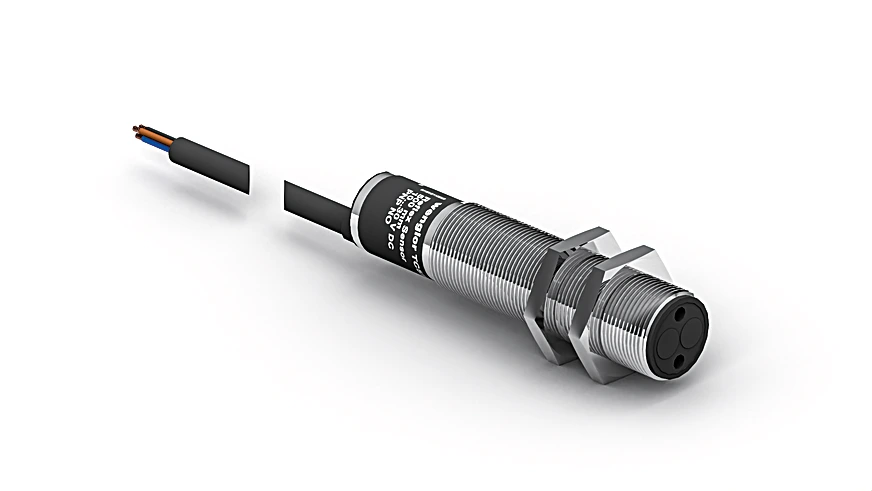

Wenglor TC55PB-P24 Reflex Sensor Energetic

Reflex Sensor Energetic.

$286.00
Part Number
  • TC55PB-P24
Highlights...

Features

  • Adjustable detection range
  • Stainless steel housing
  • Range: 500 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 12 °
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 500 Hz
  • Response Time: 1 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

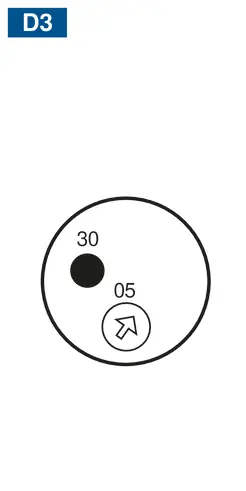

  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP65

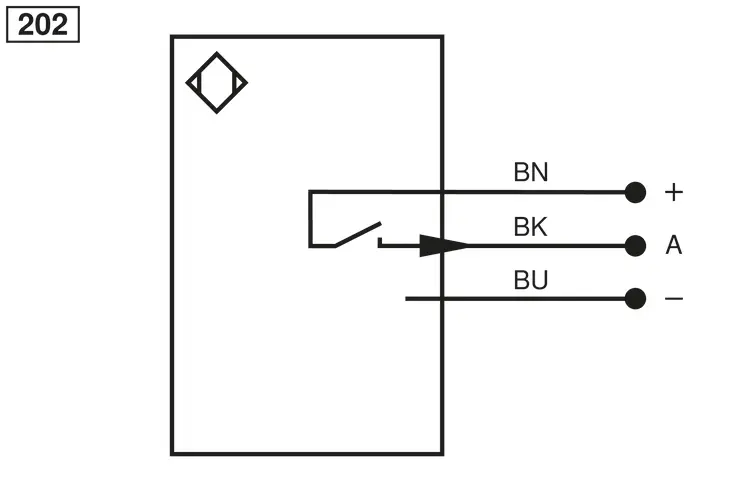

  • Connection: Cable; 3-wire
  • Cable length (L): 6 m
  • Cable Jacket Material: PVC
  • Wire cross-section: 0.5 mm²
  • Weight: 357 g
  • Scope of delivery: 1 × MUTTER-M18-E001 hex nut, 1 × sensor
  • PNP NO: yes
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-01
The transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
