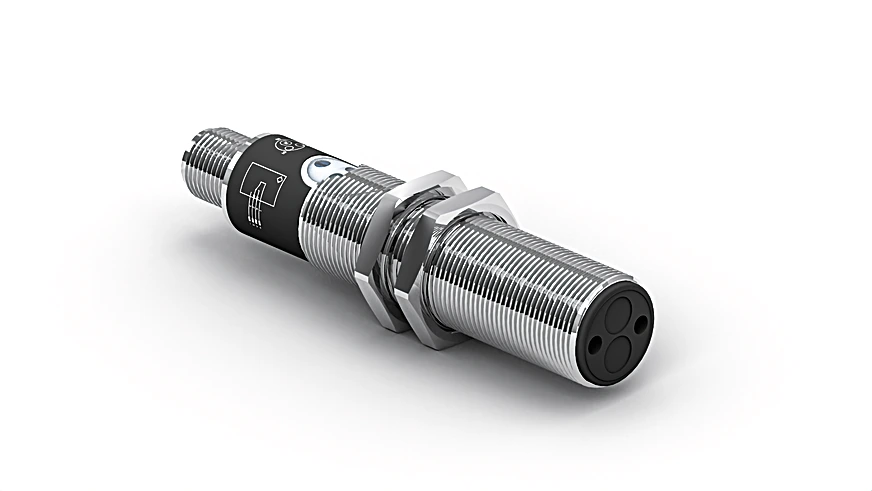

Wenglor TC55NA3S756 Reflex Sensor Energetic

Reflex Sensor Energetic.

$443.00
Part Number
  • TC55NA3S756
Highlights...

Features

  • Stainless steel housing
  • Adjustable detection range
  • Range: 500 mm
  • Switching Hysteresis: 15 %
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 12 °
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 2 kHz
  • Response Time: 250 µs
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • NPN Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

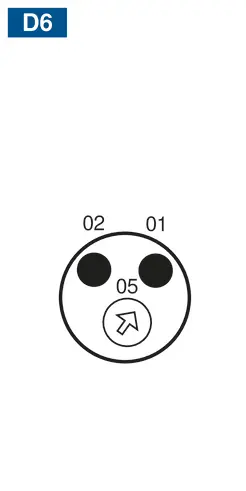

  • Setting Method: Potentiometer
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67

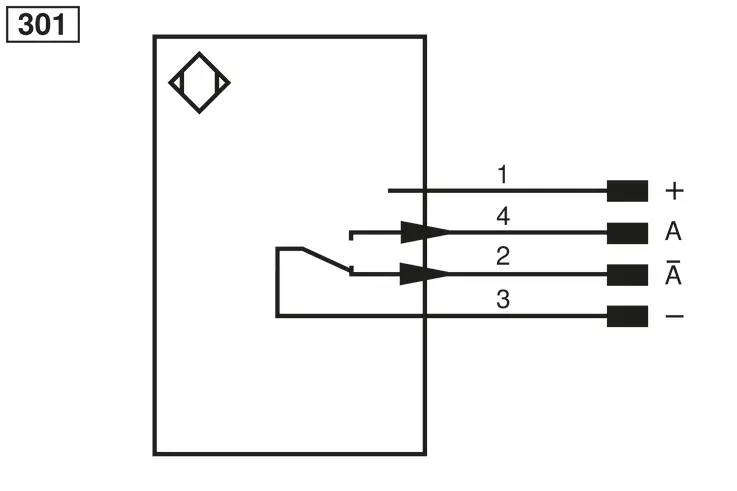

  • Connection: M12 × 1; 4-pin
  • Weight: 88 g
  • MTTFd (EN ISO 13849-1): 1,888.75 a
  • Scope of delivery: 1 × GS1 glass disk, 1 × sensor
  • NPN NC, NPN NO: yes
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-01
The transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
