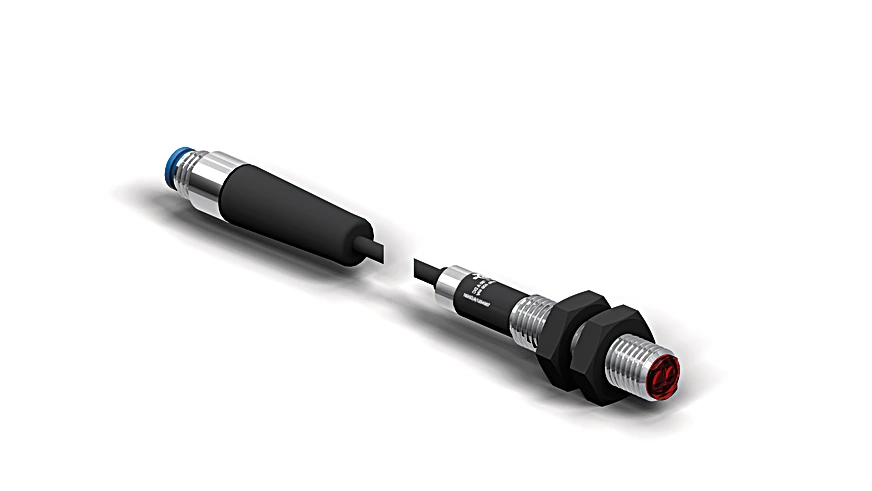

Wenglor TB06PC7K Reflex Sensor Energetic

Reflex Sensor Energetic.

$198.00
Part Number
  • TB06PC7K
Highlights...

Features

  • Contamination warning
  • Infrared light
  • Compact housing
  • Range: 60 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 1,800 Hz
  • Response Time: 270 µs
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67

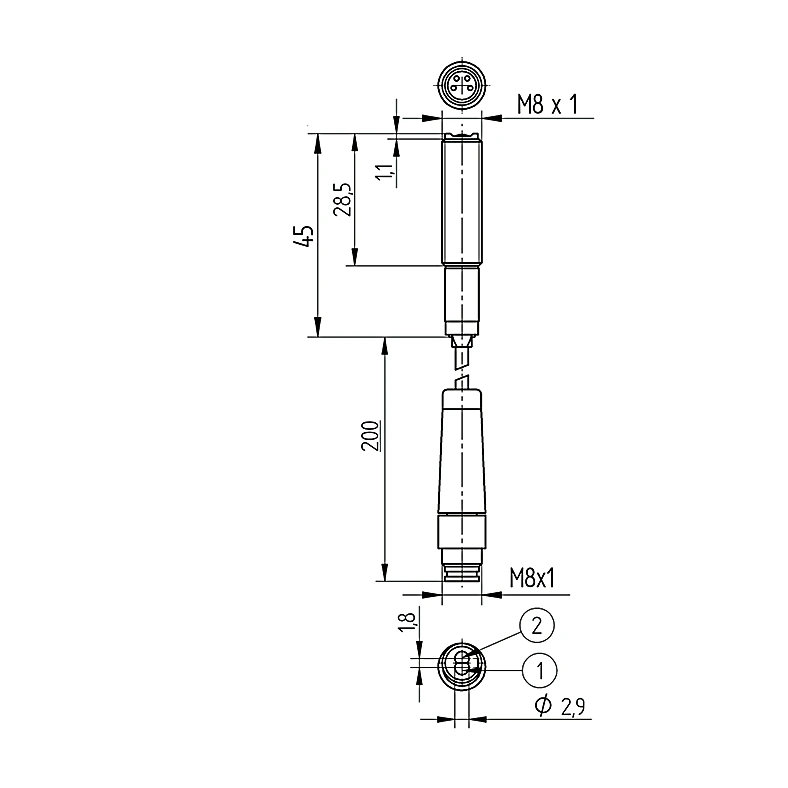

  • Connection: M8 × 1; 4-pin
  • Cable length (L): 200 mm
  • Cable Jacket Material: PVC
  • Weight: 12 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M8-E002 hex nut, 1 × sensor
  • PNP NO: yes

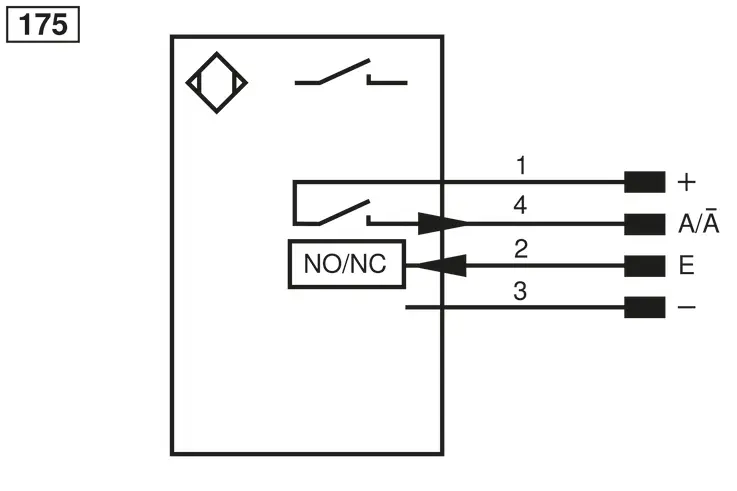

  • Circuit: NC, NC/NO, NO
  • Detection Range: 20 mm, 40 mm, 60 mm
  • Light Spot Diameter: 3 mm, 6 mm, 9 mm
  • Complementary Products: PNP-NPN Converter BG7V1P-N-2M
The transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
