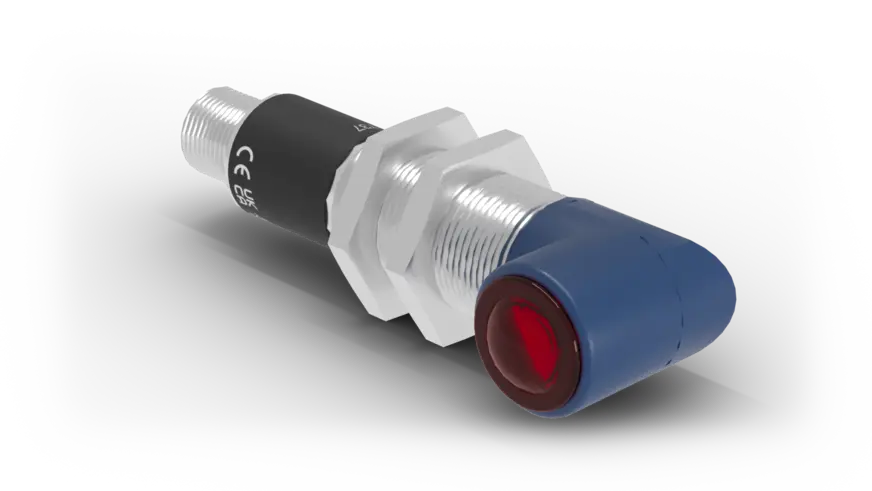

Wenglor SW983S737 Through-Beam Sensor

Through-Beam Sensor.

$462.00
Part Number
  • SW983S737
Highlights...

Features

  • Special alignment optic
  • Test input
  • Range: 2,000 mm
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 12 °
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Temperature Drift: < 10 %
  • Temperature Range: 14°F to 140°F
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Housing Material: Stainless steel, V2A (1.4305/303), Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67

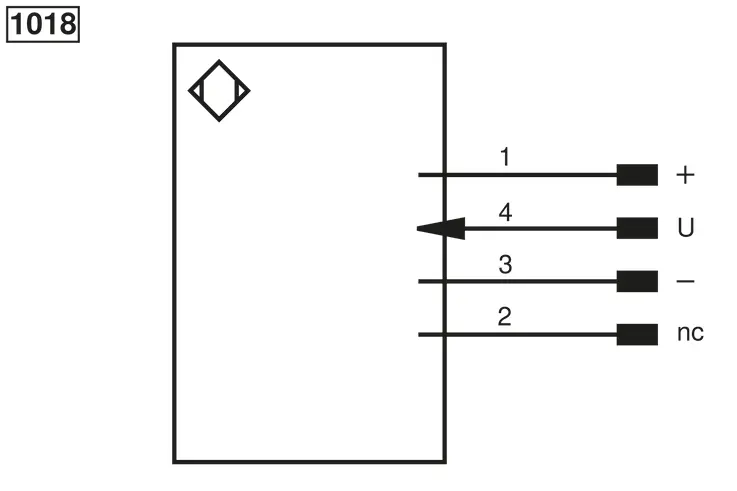

  • Connection: M12 × 1; 4-pin
  • Weight: 72 g
  • Scope of delivery: 1 × MUTTER-M18-E003 hex nut, 1 × sensor
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
