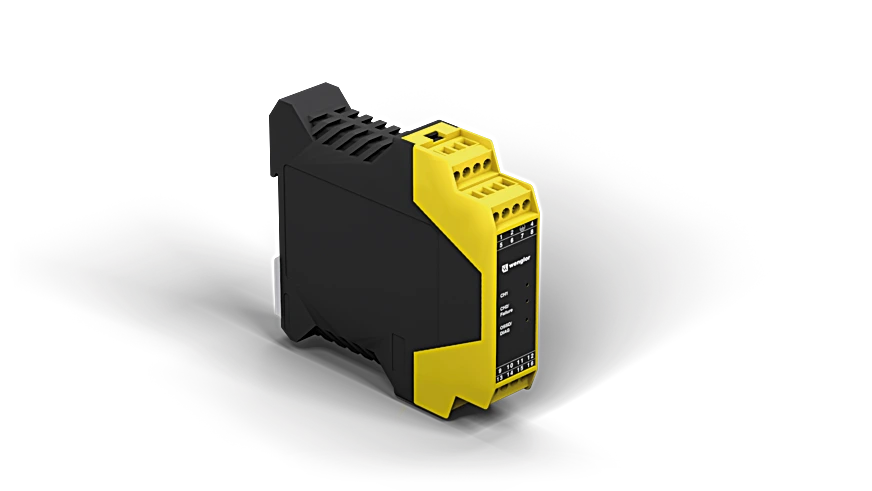

Wenglor SS2-00VA000R4 Safety Analysis Module for Safety Through-Beam Sensor

Features

• Four through-beam sensors can be connected
• Potential-free safety relay outputs
• Monitoring of external safety relays
• Supply Voltage: 24 V DC
• Current Consumption (Ub = 24 V): < 125 mA
• Response Time: < 80 ms
• Temperature Range: -22°F to 131°F
• Storage temperature: -22°F to 158°F
• Safety Output: Relay
• Number of safety outputs (OSSDs): 2
• Switching Output Voltage Drop: < 3 V
• PNP Switching Output/Switching Current: < 100 mA
• Relay Output/Switching Current (250 VAC): 2 A
• Reverse Polarity Protection: yes
• Housing Material: Plastic, PA
• Degree of Protection: IP20
• Connection: Screw Clamp (pluggable)
• Weight: 186 g
• Safety Category (EN ISO 13849-1): 2
• Performance Level (EN ISO 13849-1): PL c
• PFHD: 3,16 × E-7 1/h
• Mission Time TM (EN ISO 13849-1): 20 a
• Safety Integrity Level (EN 61508): SIL 1
• Scope of delivery: 1 × analysis module
• Restart Inhibit: yes
• Contactor Monitoring: yes
• Complementary Products: Software, S1Nx002 through-beam sensors
