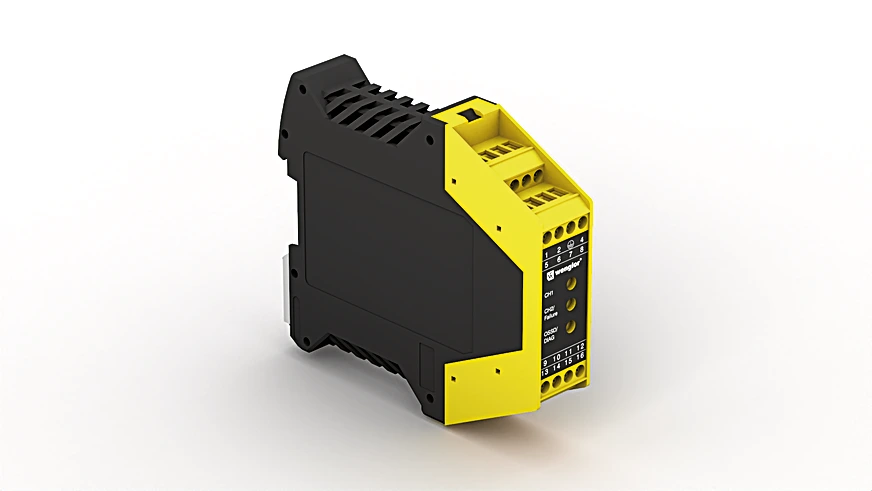

Wenglor SS2-00VA000R2 Safety Analysis Module for Safety Through-Beam Sensor

Safety Analysis Module for Safety Through-Beam Sensor.

$328.00
Part Number
  • SS2-00VA000R2
Highlights...

Features

  • Please note: According to Machinery Directive 2006/42/EC, this article may only be used as a spare part.
  • Four through-beam sensors can be connected
  • Potential-free safety relay outputs
  • Monitoring of external safety relays
  • Supply Voltage: 24 V DC
  • Current Consumption (Ub = 24 V): < 260 mA
  • Response Time: < 80 ms
  • Temperature Range: 32°F to 131°F
  • Safety Output: Relay
  • Number of safety outputs (OSSDs): 2
  • Switching Output Voltage Drop: < 3 V
  • PNP Switching Output/Switching Current: < 100 mA
  • Relay Output/Switching Current (250 VAC): 2 A
  • Reverse Polarity Protection: yes
  • Protection Class: II
  • Housing Material: Plastic, PA
  • Degree of Protection: IP20
  • Connection: Screw Clamp
  • Weight: 186 g
  • Safety Category (EN ISO 13849-1): 2
  • Performance Level (EN ISO 13849-1): PL c
  • PFHD: 3,16 × E-7 1/h
  • Safety Integrity Level (EN 62061): SILCL 1
  • Restart Inhibit: yes
  • Contactor Monitoring: yes
  • Complementary Products: SL2-00Nx000H2 through-beam sensor, Software
The analysis module is used to monitor up to 4 through-beam sensors. Interruption of one or more beams results in deactivation of the safety output.
