Wenglor SO98-U Through-Beam Sensor

Through-Beam Sensor.

$145.00
Part Number
  • SO98-U
Highlights...

Features

  • Ample performance reserves
  • Infrared light
  • Test input
  • Insensitive to contamination
  • Range: 10,000 mm
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 12 °
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Temperature Drift: < 10 %
  • Temperature Range: 14°F to 140°F
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67

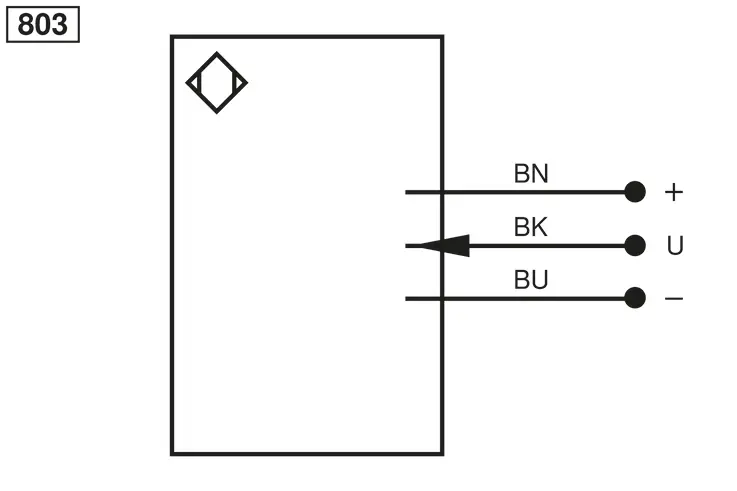

  • Connection: Cable; 3-wire
  • Cable length (L): 2 m
  • Cable Jacket Material: Plastic, PUR
  • Wire cross-section: 0.14 mm²
  • Weight: 79 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M12-E001 hex nut, 1 × sensor
  • Complementary Products: Path-Folding Mirror LA9
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
