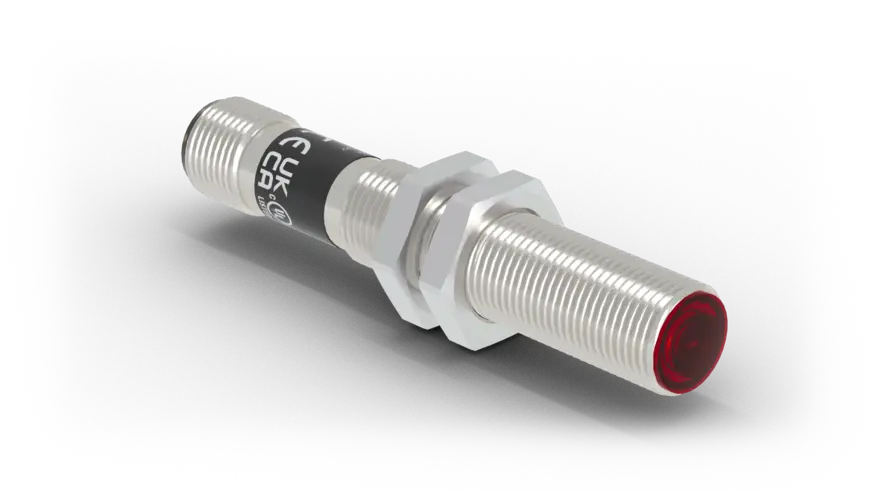

Wenglor SO953N Through-Beam Sensor

Features

• Red light
• Test input
• Range: 5,000 mm
• Light Source: Red Light
• Service Life (T = 77°F): 100,000 h
• Opening Angle: 8 °
• Sensor Type: Emitter
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Temperature Drift: < 10 %
• Temperature Range: 14°F to 140°F
• Reverse Polarity Protection: yes
• Protection Class: III
• Housing Material: Brass, nickel-plated
• Full Encapsulation: yes
• Degree of Protection: IP67

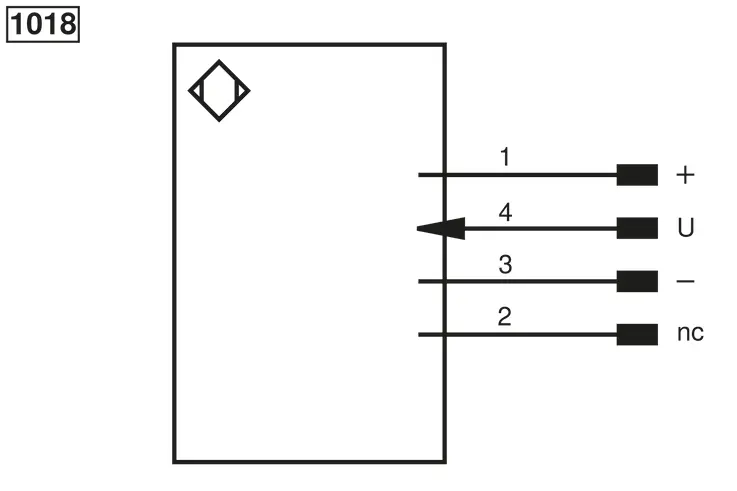

• Connection: M12 × 1; 4-pin
• Weight: 16 g
• Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M12-E001 hex nut, 1 × sensor
• Complementary Products: Path-Folding Mirror LA9
