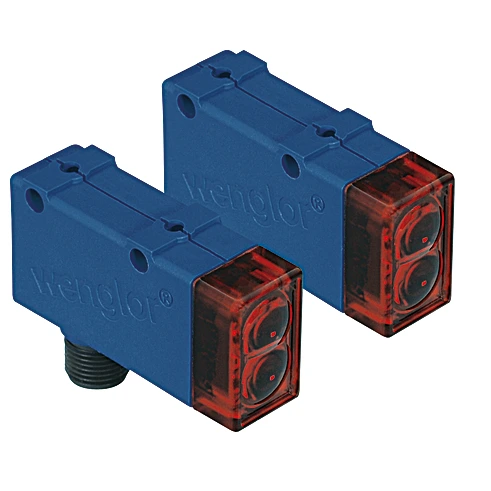

Wenglor SM982 Through-Beam Sensor

Through-Beam Sensor.

$91.90
Part Number
  • SM982
Highlights...

Features

  • Compact housing
  • Red light
  • Test input
  • Range: 10,000 mm
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 4 °
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Temperature Drift: < 10 %
  • Temperature Range: 14°F to 140°F
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67

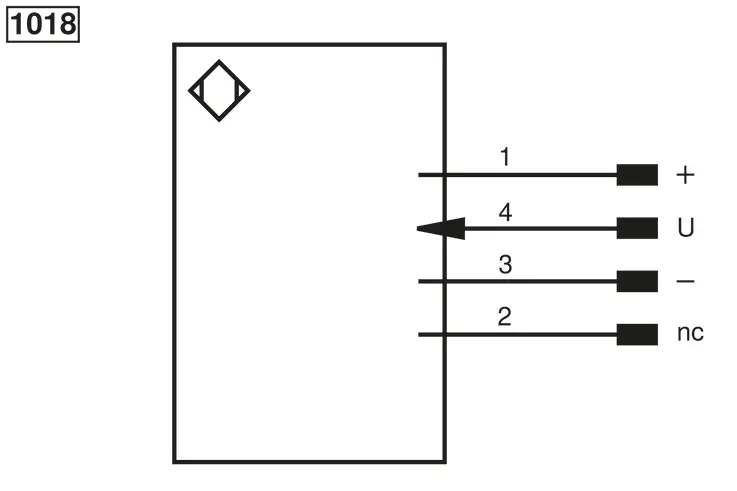

  • Connection: M12 × 1; 4-pin
  • Weight: 25 g
  • Complementary Products: Protective Housing ZSV-0x-01, Set Protective Housing ZSM-NN-02
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
