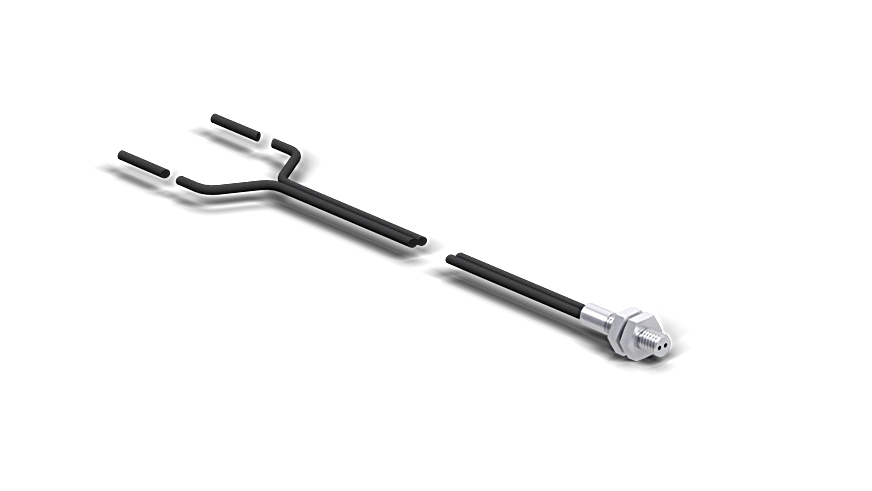

Wenglor SLK2198 Plastic Fiber-Optic Cable Reflex Mode

Features

• Especially suitable in applications where only minimal space is available
• Fiber-optic cable can be cut to length by the cutting tool
• Fiber Core Diameter: 0.5 mm
• Fiber Core: Plastic, PMMA
• Fiber: Step Index
• Fiber Distribution: parallel arrangement
• Opening Angle: 55 °
• Temperature Range: -40°F to 185°F
• Bending Radius: 15 mm
• Fiber-Optic Length L: 0.235 m
• Jacket Material: PVC
• Material End Sleeve: Stainless Steel
• Jacket Diameter: 1 mm
• Light Emission: straight
• Weight: 11 g
• Packaging unit: 1 Piece
• Scope of delivery: 1 × fiber-optic cable, 1 × Z0015 cutting tool, 2 × M3 hex nuts
