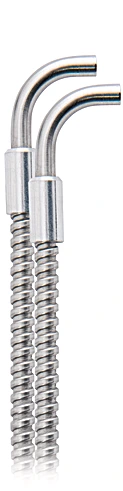

Wenglor SLK1125 Glass Fiber-Optic Cable Through-Beam Mode

Glass Fiber-Optic Cable Through-Beam Mode.

$647.00
Part Number
  • SLK1125
Highlights...

Features

  • The fiber-optic cable is available and can be ordered.
  • A broad range of applications are possible due to the modular system design
  • Fiber Bundle Diameter: 1.1 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Fiber Distribution: statistical mixture
  • Temperature Range: -13°F to 356°F
  • Fiber-Optic Length L: 1 m
  • Jacket Material: Stainless Steel
  • Material End Sleeve: Stainless Steel
  • Weight: 100 g
  • Scope of delivery: 1 × UEM30ME-01 sleeve nut, 2 × fiber-optic cables, 2 × O-rings ø 3 mm
Glass fiber-optic cables are extremely flexible and can be used in confined spaces. Metal-sheathed glass fiber-optic cables are the solution for high ambient temperatures in particular. The modular system enables different fiber diameters, sheaths and other options to be manufactured individually. The technical support team will be happy to answer any further questions you may have.
