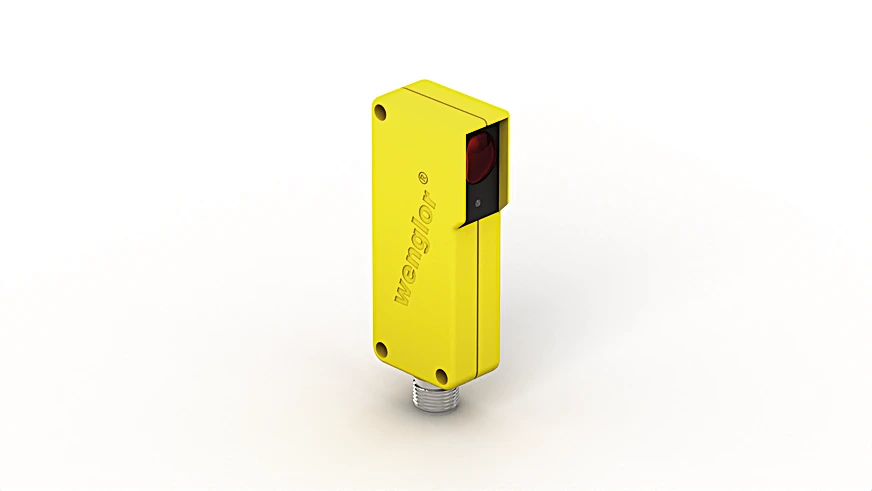

Wenglor SL2-00NS000H3 Safety Through-Beam Sensor

Features

• Please note: According to Machinery Directive 2006/42/EC, this article may only be used as a spare part.
• Glass lenses
• Quick alignment through visible red light
• Test input
• Range: 0 to 20 m
• Light Source: Red Light
• Wavelength: 640 nm
• Opening Angle: ± 4 °
• Sensor Type: Emitter
• Supply Voltage: 19.2 to 28.8 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Temperature Range: -13°F to 140°F
• Short Circuit Protection: yes
• Overload Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III
• Housing Material: Plastic, PBT
• Optic Cover: Glass
• Full Encapsulation: yes
• Degree of Protection: IP67

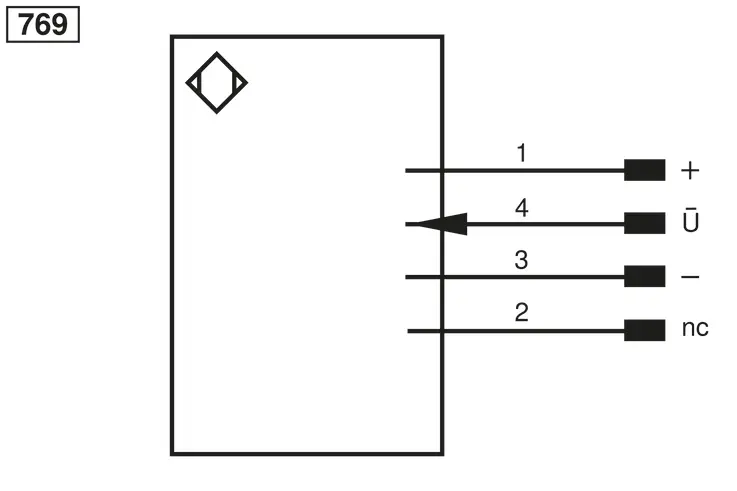

• Connection: M12 × 1; 4-pin
• Weight: 78 g
• ESPE Type (EN 61496): 2
• Safety Category (EN ISO 13849-1): 2
• Performance Level (EN ISO 13849-1): PL c
• Mission Time TM (EN ISO 13849-1): 20 a
• MTTFd (EN ISO 13849-1): 381 a
• Scope of delivery: 1 × BEF-SET-02 mounting set, 1 × sensor
• Complementary Products: Set Protective Housing ZSN-NN-02, Path-Folding Mirror Z2UG001, Software
