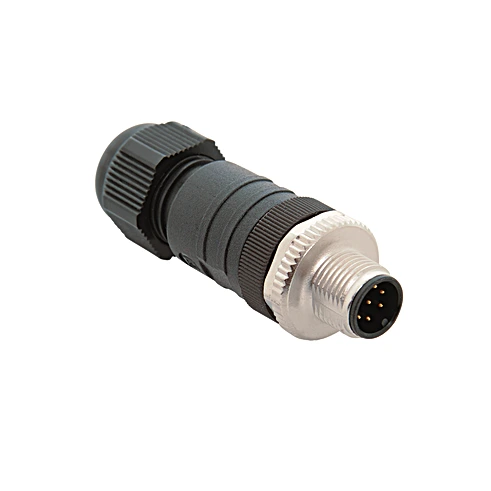

Wenglor SG80-ME Connector Plug M12 × 1; 8-pin

Connector Plug M12 × 1; 8-pin.

$34.20
Part Number
  • SG80-ME
Highlights...

Features

  • Plug M12 × 1, straight
  • Connection 1: Plug, straight
  • Connection mode 1: M12 × 1, 8-pin
  • Torque: M12: 0,6 Nm
  • Coding: A-coding
  • Outer diameter (d): 4 to 8 mm
  • Wire cross-section: ≤ 0.5 mm²
  • Assembling: Screw Terminal Technology
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 194°F
  • Material Sleeve Nut: Brass, nickel-plated
  • Weight: 24 g
  • Scope of delivery: 1 × connector plug
  • Packaging unit: 1 Piece
