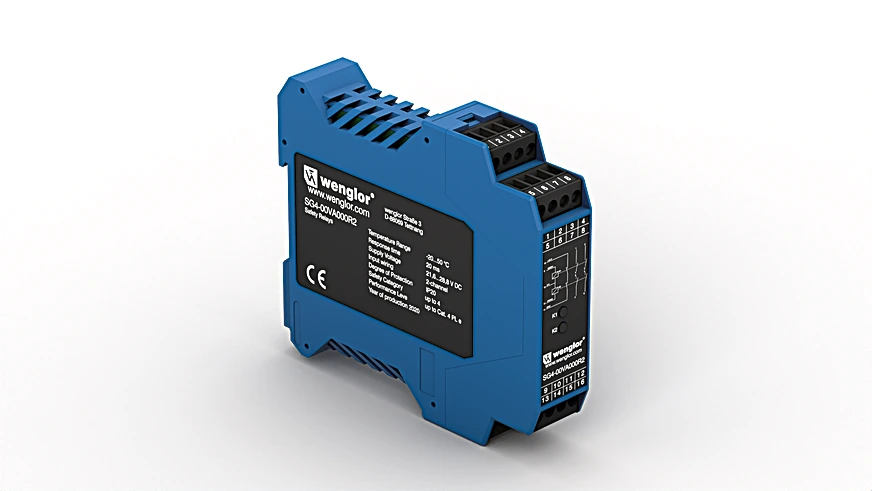

Wenglor SG4-00VA000R2 Safety Relay Basic Module

Features

• Potential-free load interruption
• Terminal block

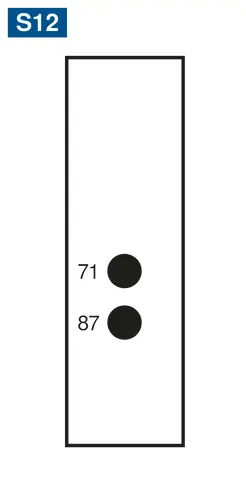

• Switching status indicator
• Supply Voltage: 21.6 to 28.8 V DC

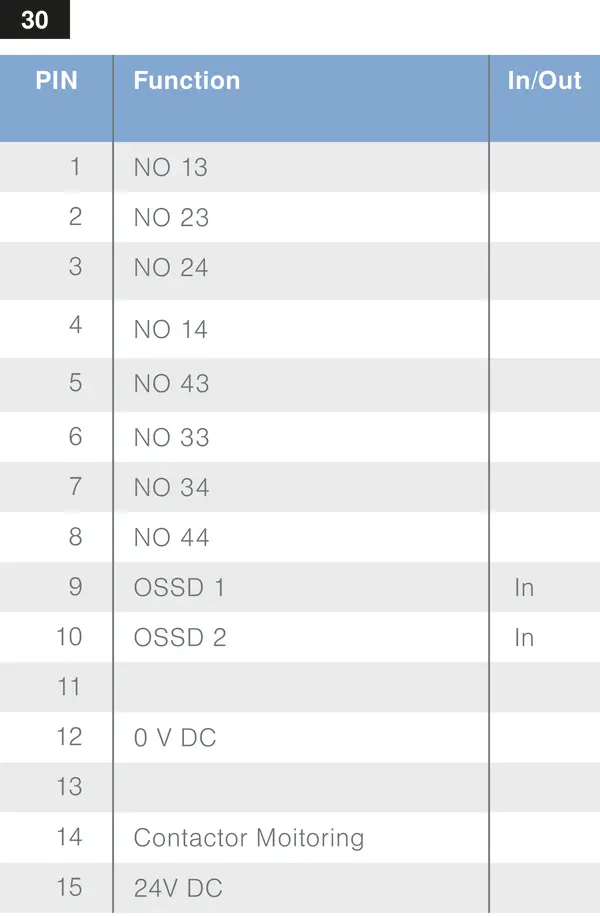

• Input wiring: 2-channel
• Response time (automatic start): 20 ms
• Fall time (emergency stop): 8 ms
• Temperature Range: -4°F to 122°F
• Number of Safety Outputs stop 0: 2
• Switching current safety output (250 V AC): 3 A
• Housing Material: Plastic, PA
• Degree of Protection: IP20
• Connection: Screw-type connection (pluggable)
• Clampable Wire Cross-Section: 0.25 to 2.5 mm²
• DIN-Rail mounting: 35 mm
• Weight: 210 g
• Safety Category (EN ISO 13849-1), Stop 0: up to 4
• Performance Level (EN ISO 13849-1), Stop 0: up to Cat. 4 PL e
• Mission Time TM (EN ISO 13849-1): 20 a
• Stop Category (EN 60204-1): 0
• B10d Switching Cycles (mechanical): 40 000 000
• B10d Switching Cycles (60 % load): 400 000
• B10d Switching Cycles (100 % load): 200 000
• Scope of delivery: 1 × quick start, 1 × safety light array
• Start, automatically: yes
• Input signal OSSD: yes
• NO: yes
• Complementary Products: Software
