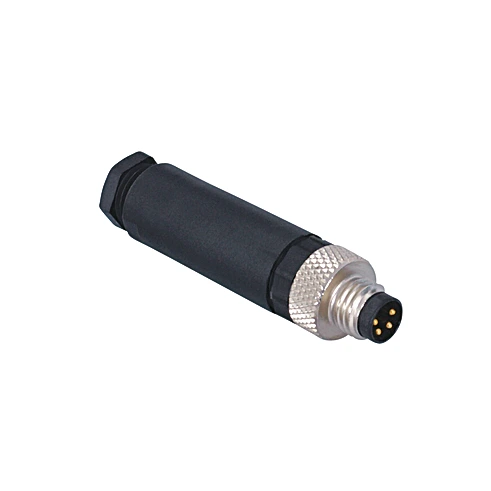

Wenglor SG07-ME Connector Plug M8 × 1; 4-pin

Connector Plug M8 × 1; 4-pin.

$22.90
Part Number
  • SG07-ME
Highlights...

Features

  • Plug M8 × 1, straight
  • Connection 1: Plug, straight

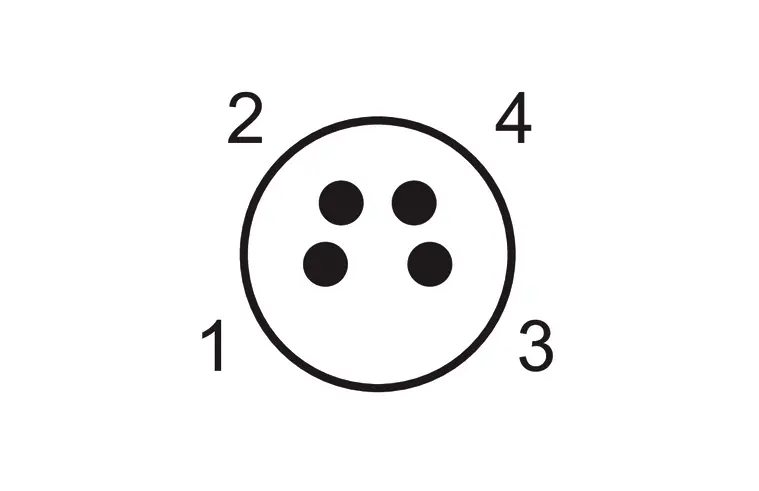

  • Connection mode 1: M8 × 1, 4-pin
  • Torque: M8: 0,3 Nm
  • Outer diameter (d): 3.5 to 5 mm
  • Wire cross-section: 0.14 to 0.34 mm²
  • Assembling: Screw Terminal Technology
  • Degree of Protection: IP67
  • Temperature Range: -40°F to 185°F
  • Material Sleeve Nut: Brass, nickel-plated
  • Weight: 13 g
  • Scope of delivery: 1 × connector plug
  • Packaging unit: 1 Piece
