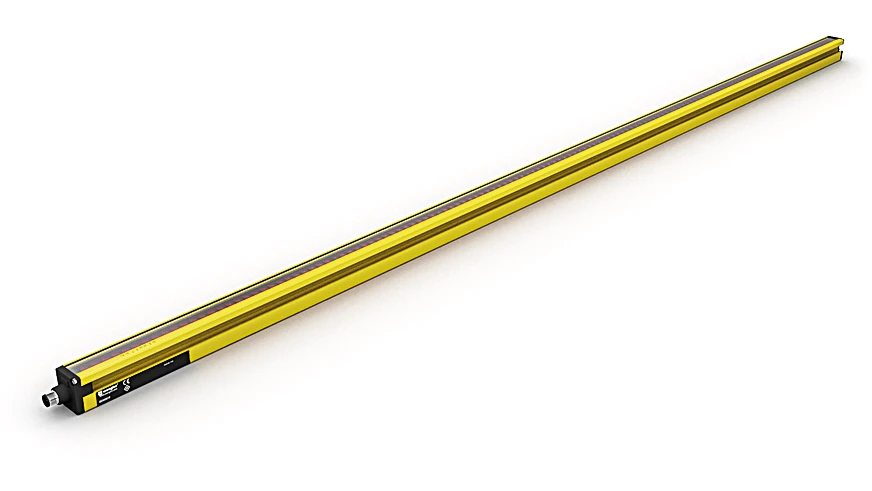

Wenglor SEMG679 Safety Light Curtain Finger Protection

Safety Light Curtain Finger Protection.

$3,239.00
Part Number
  • SEMG679
Highlights...

Features

  • Easy configuration via wiring
  • Slim design for easy integration
  • Quick alignment through visible red light
  • Protection field over the entire length of the housing for an installation without protrusion
  • Range: 0.25 to 6 m

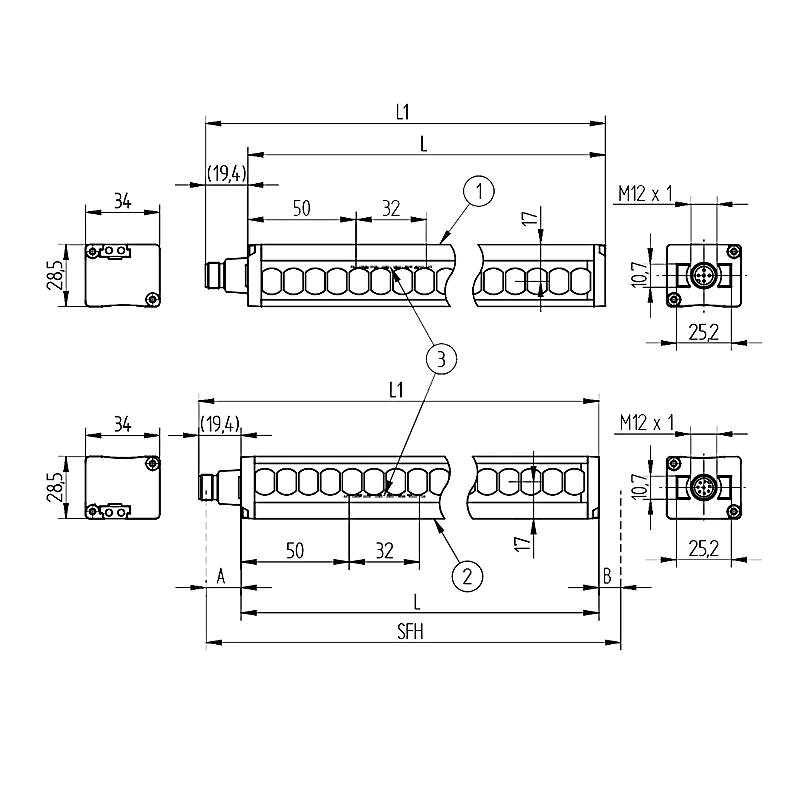

  • Housing Length (L): 1,361 mm
  • Safety Field Height (SFH): 1,361 mm
  • Resolution: 14 mm
  • Light Source: Red Light
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: ± 2.5 °
  • Sensor Type: Receiver
  • Supply Voltage: 19.2 to 28.8 V DC
  • Current Consumption (Ub = 24 V): 170 mA
  • Response Time: 19.8 ms
  • Temperature Range: 23°F to 131°F
  • Storage temperature: -13°F to 140°F
  • Number of safety outputs (OSSDs): 2
  • Safety Output Voltage Drop: < 2.3 V
  • PNP Safety Output/Switching Current: 300 mA
  • Number of Signal Outputs: 1
  • Signal Output Voltage Drop: < 2.5 V
  • Signal Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Aluminum, powder-coated
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP65, IP67

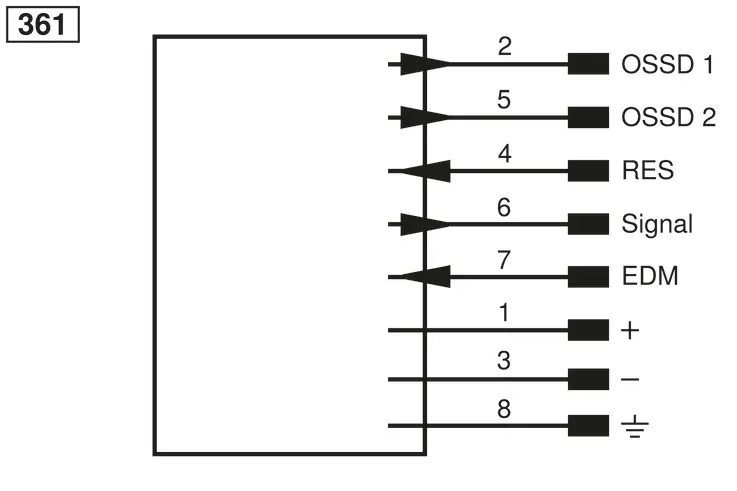

  • Connection: M12 × 1; 8-pin
  • Weight: 1,460 g
  • ESPE Type (EN 61496): 4
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • PFHD: 1,60 × E-8 1/h
  • Mission Time TM (EN ISO 13849-1): 20 a
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • Scope of delivery: 1 × safety light curtain
  • Finger Protection: yes
  • Scope of functions: Basic function
  • Complementary Products: Safety Relay SG4-00VA000R2, SR4B3B01S, SR4D3B01S, Protection Column with Protective Screen SZ000EG170NN01, Protection Column with Path-Folding Mirror SZ000EU170NN01, Path-Folding Mirror Z2UG004, Software, Protection column with deflection mirror Z2SU002, Protection column with protective screen Z2SS002
These safety light curtains complete all basic tasks with ease. The basic functions of safety operating mode, restart inhibit and contactor monitoring are integrated as standard and can be easily configured. Without protrusion, the safety field always extends to the end of the housing. This makes it easy to secure even in confined installation conditions.
