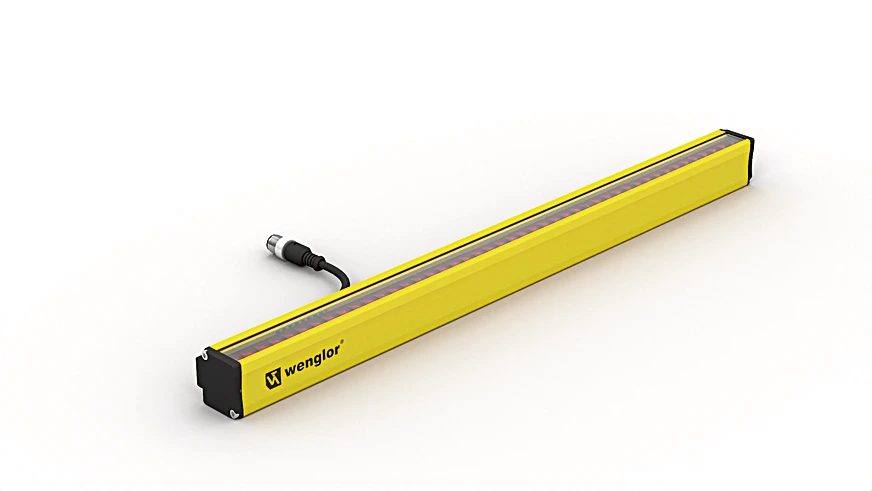

Wenglor SEMG533 Safety Light Curtain Finger Protection

Safety Light Curtain Finger Protection.

$1,302.00
Part Number
  • SEMG533
Highlights...

Features

  • Easy configuration via wiring
  • Slim design for easy integration
  • Quick alignment through visible red light
  • Protection field over the entire length of the housing for an installation without protrusion
  • Range: 0.25 to 6 m

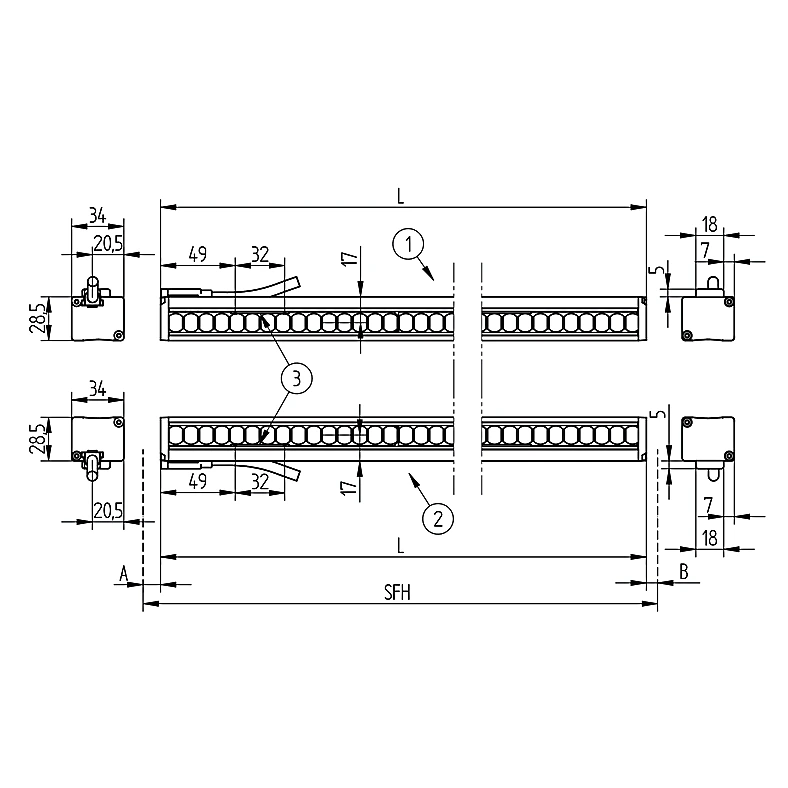

  • Housing Length (L): 459 mm
  • Safety Field Height (SFH): 460 mm
  • Resolution: 14 mm
  • Light Source: Red Light
  • Wavelength: 630 nm
  • Opening Angle: ± 2.5 °
  • Sensor Type: Emitter
  • Supply Voltage: 19.2 to 28.8 V DC
  • Current Consumption (Ub = 24 V): 75 mA
  • Temperature Range: -13°F to 131°F
  • Storage temperature: -13°F to 140°F
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Housing Material: Aluminum, powder-coated
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP65, IP67

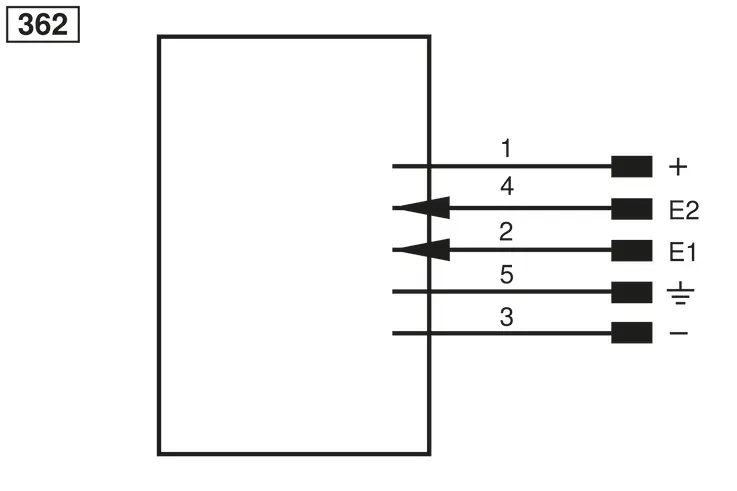

  • Connection: M12 × 1; 5-pin
  • Cable length (L): 300 mm
  • Weight: 690 g
  • ESPE Type (EN 61496): 4
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • Mission Time TM (EN ISO 13849-1): 20 a
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • Scope of delivery: 1 × safety light curtain
  • Finger Protection: yes
  • Scope of functions: Basic function
  • Complementary Products: Protection Column with Protective Screen SZ000EG125NN01, Protection Column with Path-Folding Mirror SZ000EU125NN01, Path-Folding Mirror Z2UG002, Software, Protection column with protective screen Z2SS001, Protection column with Z2SU001 deflection mirror
These safety light curtains complete all basic tasks with ease. The basic functions of safety operating mode, restart inhibit and contactor monitoring are integrated as standard and can be easily configured. Without protrusion, the safety field always extends to the end of the housing. This makes it easy to secure even in confined installation conditions.
