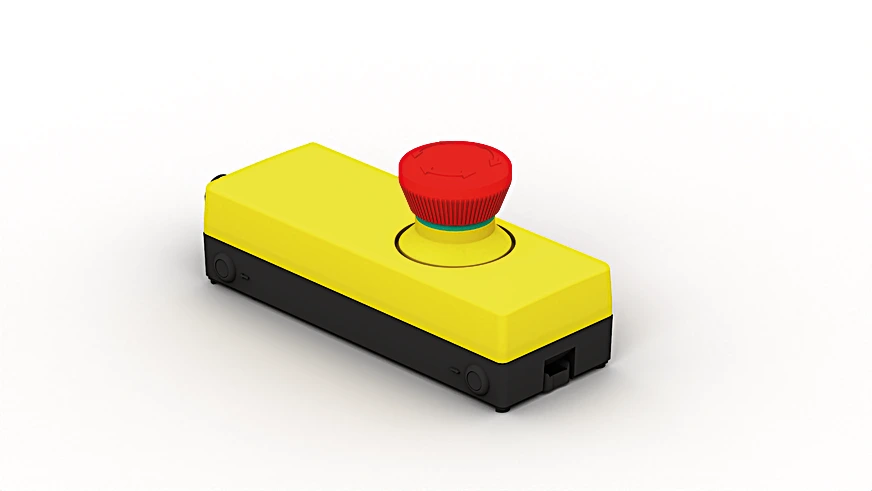

Wenglor SEM21N0189 Emergency Stop Switch Complete Set

Features

• Simple installation on profiles and walls
• Unlocking by turning left or right
• M12 connection
• Slender housing
• Temperature Range: -13°F to 158°F
• Storage temperature: -13°F to 185°F
• Protection Class: II
• Housing Material: Plastic
• Service Life (Activations): 50000
• Service Life (Switching Cycle): 50000
• Bounce time: < 10 ms
• Degree of Protection: IP65
• Installation Type: Setting up
• Unlocking: turning

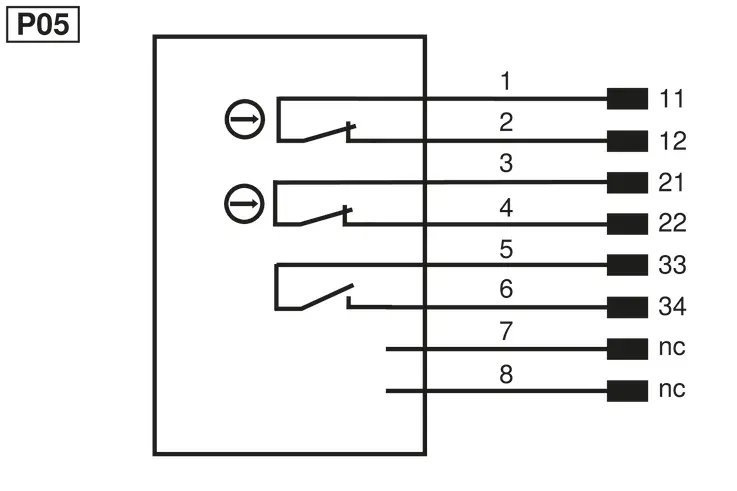

• Connection: M12 × 1; 8-pin
• Weight: 158 g
• B10d Switching Cycles: 250 000
• Number of positively driven contacts: 2
• Number of NO: 1
• Scope of delivery: 1 × emergency stop switch
• Switching position indicator: yes
• Complementary Products: Safety Relay SR4B3B01S, SR4D3B01S, Software
