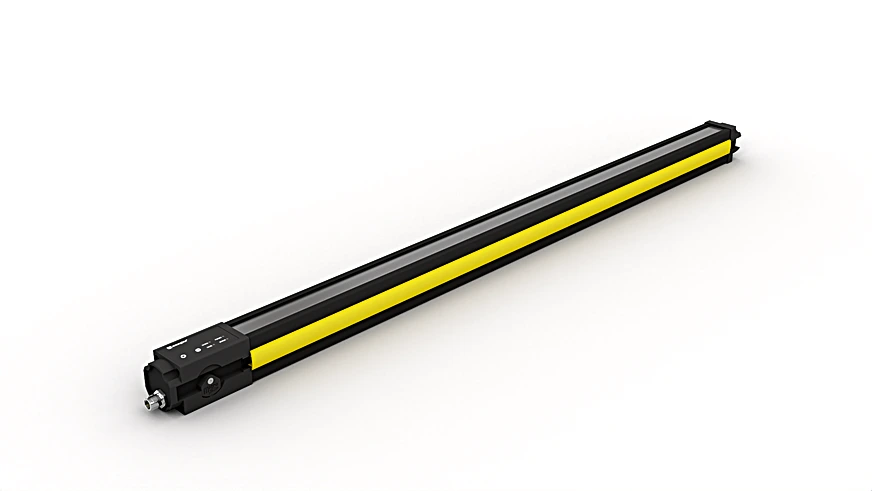

Wenglor SEFG535 Safety Light Curtain Finger Protection

Safety Light Curtain Finger Protection.

$2,963.00
Part Number
  • SEFG535
Highlights...

Features

  • Range: 0.25 to 7 m

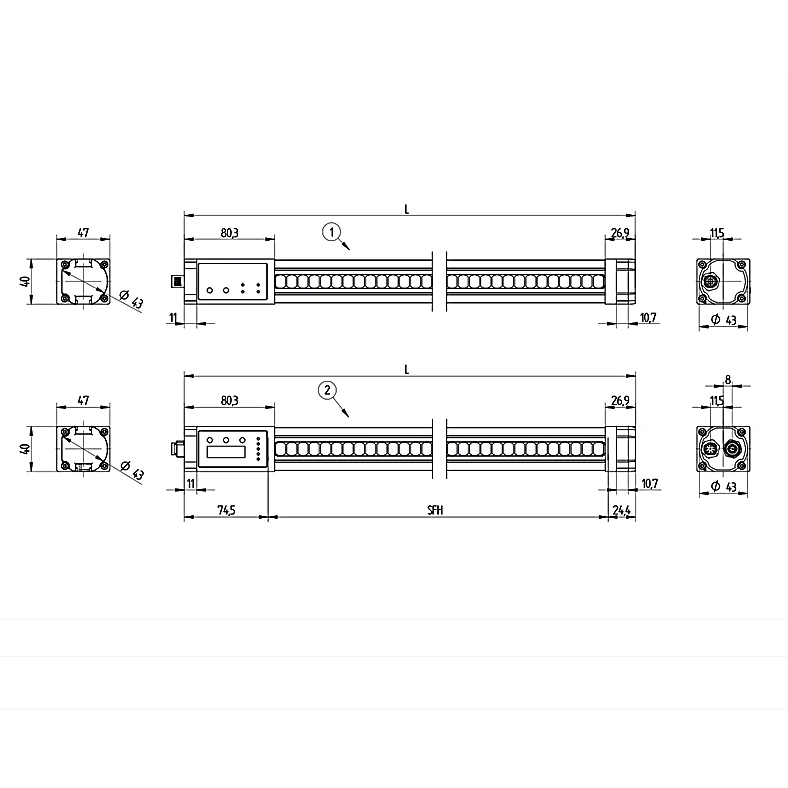

  • Housing Length (L): 1,009 mm
  • Safety Field Height (SFH): 760 mm
  • Resolution: 14 mm
  • Light Source: Red Light
  • Wavelength: 630 nm
  • Opening Angle: ± 2.5 °
  • Sensor Type: Emitter
  • Supply Voltage: 19.2 to 28.8 V DC
  • Current Consumption (Ub = 24 V): ≤ 100 mA
  • Response Time: 16.2 ms
  • Temperature Range: -22°F to 131°F
  • Storage temperature: -22°F to 158°F
  • Protection Class: III
  • Housing Material: Aluminum, anodised
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP65, IP67

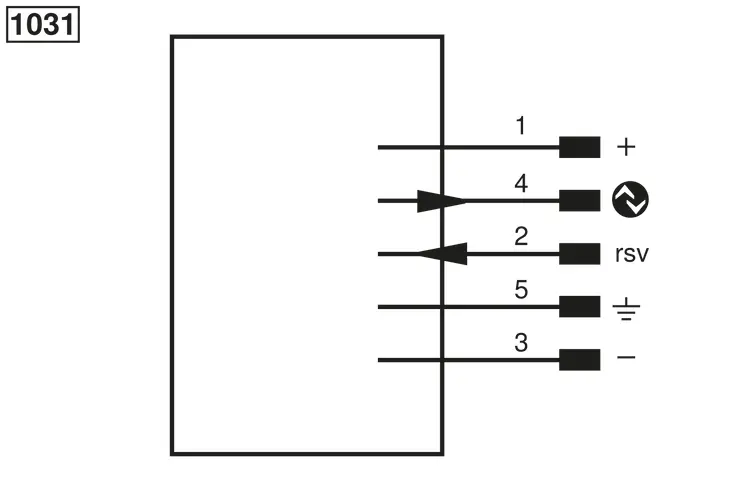

  • Connection: M12 × 1; 5-pin
  • Weight: 1,550 g
  • ESPE Type (EN 61496): 4
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • PFHD: ≤ 1.8 × 10-8
  • Mission Time TM (EN ISO 13849-1): 20 a
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • Scope of delivery: 1 × safety light curtain
  • Finger Protection: yes
  • IO-Link: yes
  • Complementary Products: Protection column with Z2SU001 deflection mirror, Protection columns with/without protective screen (Z2SS001/ Z2SM001), Deflection mirror Z0030
The safety light curtain can be flexibly integrated into systems thanks to the well-conceived mounting technology and the compact housing. Alignment of the emitter and the receiver is simplified by the visible red light and the signal strength display. User-friendly wTeach2 software make settings and diagnosis via the IO-Link interface extremely easy. Settings can be subsequently saved to a microSD card and quickly duplicated on other products. Extensive muting functions guarantee an ideal solution for every application in order to safely transport objects into and out of the danger zone.
