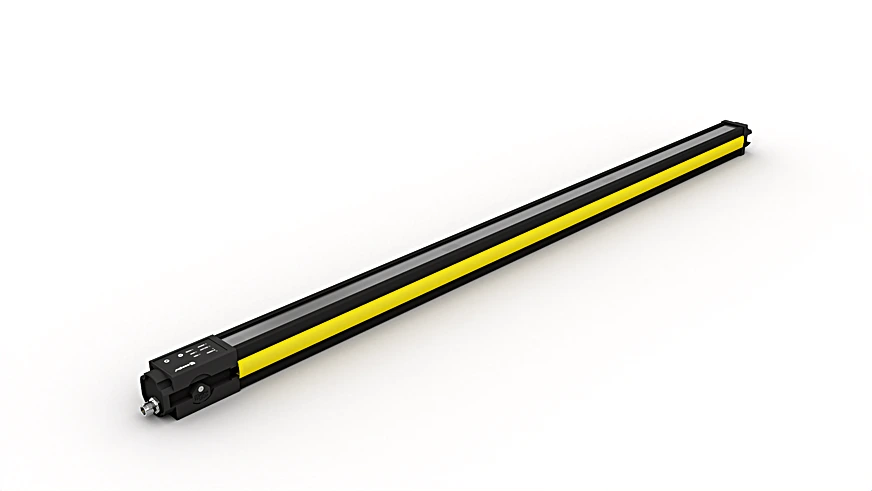

Wenglor SEFB624 Safety Light Array Body Protection

Features

• Simple configuration and diagnosis with wTeach2 software
• Multifunctional thanks to measuring function
• Quick alignment through visible red light
• Range: 0.5 to 50 m
• Beam Distance: 300 mm
• Number of Beams: 4
• Light Source: Red Light
• Max. Ambient Light: 10,000 Lux
• Opening Angle: ± 2.5 °
• Sensor Type: Receiver
• Supply Voltage: 19.2 to 28.8 V DC
• Current Consumption (Ub = 24 V): ≤ 350 mA
• Response Time: 15 ms
• Temperature Range: -22°F to 131°F
• Storage temperature: -22°F to 158°F
• Number of safety outputs (OSSDs): 2
• Safety Output Voltage Drop: ≤ 2.3 V
• PNP Safety Output/Switching Current: ≤ 300 mA
• Number of Signal Outputs: 1
• Signal Output Voltage Drop: ≤ 2.5 V
• Signal Output/Switching Current: ≤ 100 mA
• Short Circuit Protection: yes
• Overload Protection: yes
• Reverse Polarity Protection: yes
• Interface: IO-Link V1.1
• Protection Class: III
• Housing Material: Aluminum, anodised
• Optic Cover: Plastic, PC
• Degree of Protection: IP65, IP67

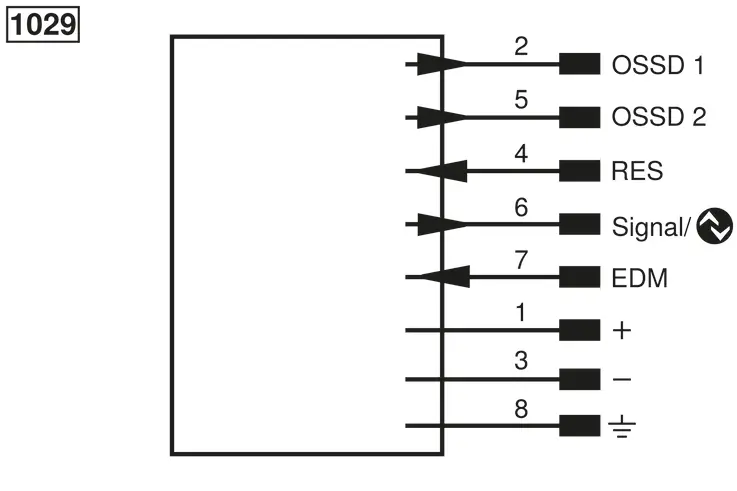

• Connection: M12 × 1
• Weight: 1,900 g
• ESPE Type (EN 61496): 4
• Performance Level (EN ISO 13849-1): Cat. 4 PL e
• PFHD: ≤ 1.8 × 10-8
• Mission Time TM (EN ISO 13849-1): 20 a
• Safety Integrity Level (EN 61508): SIL 3
• Safety Integrity Level (EN 62061): SILCL 3
• Scope of delivery: 1 × safety light array
• Body Protection: yes
• Scope of functions: Basic function
• Complementary Products: Protection column with protective screen Z2SS001, Protection Column with Path-Folding Mirror SZ000EU125NN01, Path-Folding Mirror Z2UG001, IO-Link Master, Connection box for muting sensors, Muting Sensor Set, Safety Relay SG4-00VA000R2, SR4B3B01S, SR4D3B01S, Software
