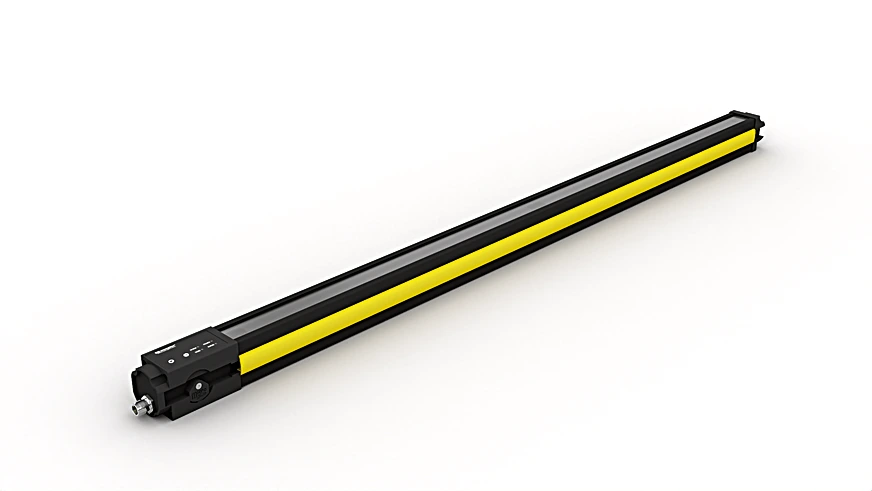

Wenglor SEFB513 Safety Light Array Body Protection

Safety Light Array Body Protection.

$1,088.00
Part Number
  • SEFB513
Highlights...

Features

  • Simple configuration and diagnosis with wTeach2 software
  • Increased safety thanks to intelligent muting functions
  • Multifunctional thanks to measuring function
  • Quick duplication of settings via microSD memory card
  • Range: 0.5 to 50 m
  • Beam Distance: 400 mm
  • Number of Beams: 3
  • Light Source: Red Light
  • Wavelength: 630 nm
  • Opening Angle: ± 2.5 °
  • Sensor Type: Emitter
  • Supply Voltage: 19.2 to 28.8 V DC
  • Current Consumption (Ub = 24 V): ≤ 100 mA
  • Temperature Range: -22°F to 131°F
  • Storage temperature: -22°F to 158°F
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Housing Material: Aluminum, anodised
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP65, IP67

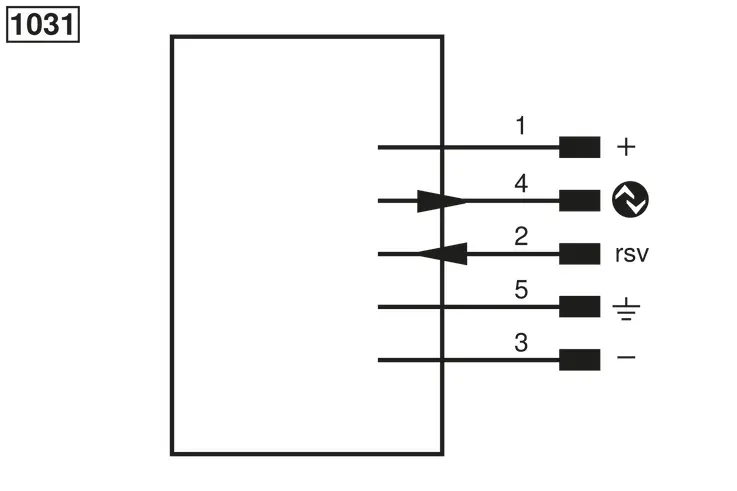

  • Connection: M12 × 1; 5-pin
  • Weight: 1,690 g
  • ESPE Type (EN 61496): 4
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • PFHD: ≤ 1.8 × 10-8
  • Mission Time TM (EN ISO 13849-1): 20 a
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • Scope of delivery: 1 × safety light array
  • Body Protection: yes
  • Complementary Products: Protection column with protective screen Z2SS001, Protection Column with Path-Folding Mirror SZ000EU125NN01, Path-Folding Mirror Z2UG001
The safety light array can be attached anywhere thanks to the T slot and mounting bracket. The visible red light and signal strength display make it easy to align the emitter and the receiver. Safety operating mode, restart inhibit and contactor monitoring are included as standard functions. The user-friendly IO-Link and wenglor software wTeach2 are used for configuration. In addition, safety light arrays provide various muting features for transporting material through hazardous areas. Optional LED indicator stripes visualize the various muting phases.
