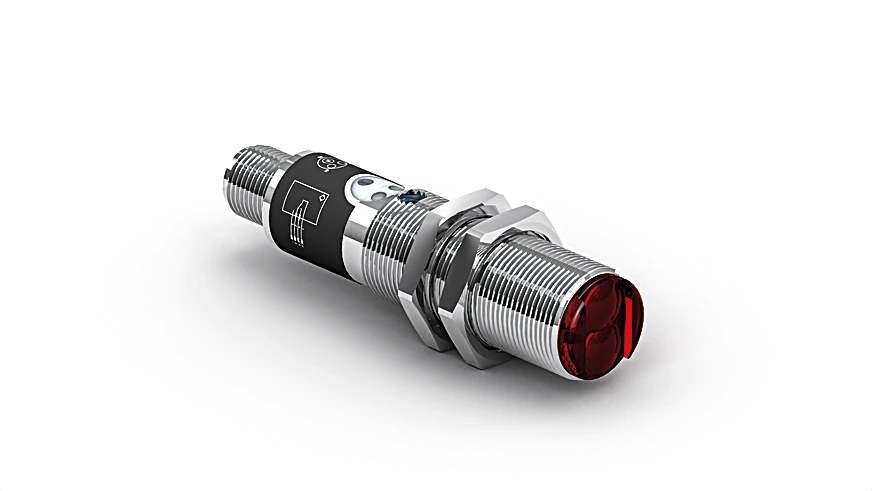

Wenglor SD983 Through-Beam Sensor

Features

• Simple adjustment with special alignment optic
• Test input
• Range: 10,000 mm
• Light Source: Red Light
• Service Life (T = 77°F): 100,000 h
• Opening Angle: 6 °
• Sensor Type: Emitter
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Temperature Drift: < 10 %
• Temperature Range: 14°F to 140°F
• Reverse Polarity Protection: yes
• Protection Class: III
• Housing Material: Stainless steel, V2A (1.4305/303)
• Full Encapsulation: yes
• Degree of Protection: IP67

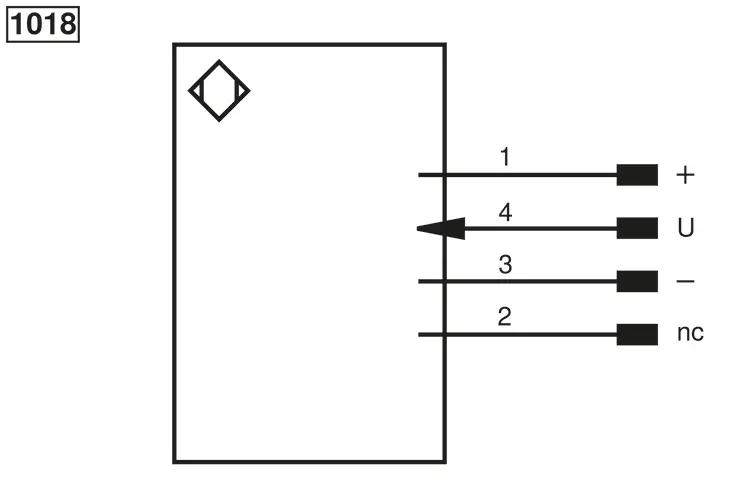

• Connection: M12 × 1; 4-pin
• Weight: 34 g
• MTTFd (EN ISO 13849-1): 5,959.11 a
• Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
• Complementary Products: Dust Extraction Tube STAUBTUBUS-01
