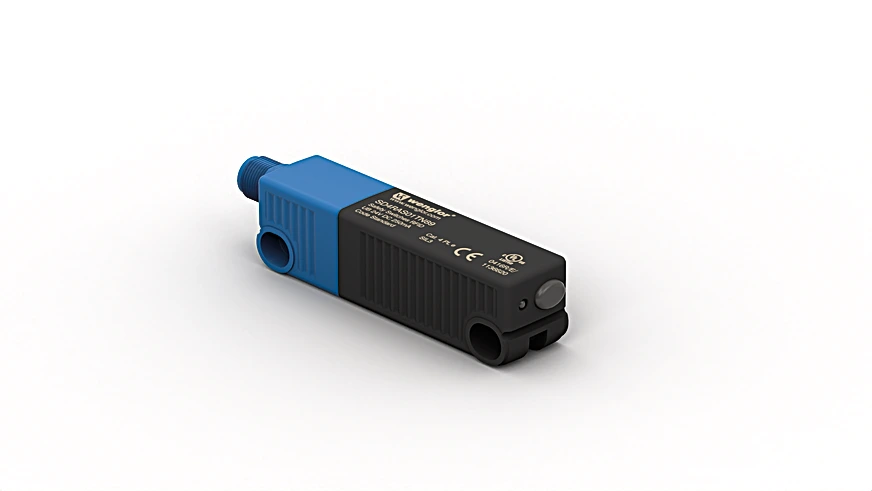

Wenglor SD4RAS02TN89 Safety Switch RFID

Safety Switch RFID.

$257.00
Part Number
  • SD4RAS02TN89
Highlights...

Features

  • Easy to clean
  • Integrated locking
  • Protection mode IP69K
  • Universal fastening opportunities
  • High level of manipulation protection thanks to RFID coding
  • Sensor Type: Switch
  • Response Time: < 100 ms
  • Risk time: < 200 ms
  • Temperature Range: -13°F to 158°F
  • Storage temperature: -13°F to 185°F
  • Safety Output: OSSD
  • Number of safety outputs (OSSDs): 2
  • PNP Safety Output/Switching Current: < 250 mA
  • Safety Output Voltage Drop: < 1 V
  • Number of Signal Outputs: 1
  • PNP signal output switching current: 50 mA
  • Short Circuit Protection: yes
  • Overload Protection: yes
  • Reverse Polarity Protection: yes
  • Protection Class: II
  • Switching Distance: 12 mm
  • Protected Sao switching-off distance: 10 mm
  • Protected Sar switching-off distance: 16 mm
  • Housing Material: Plastic
  • Degree of Protection: IP65, IP67, IP69K

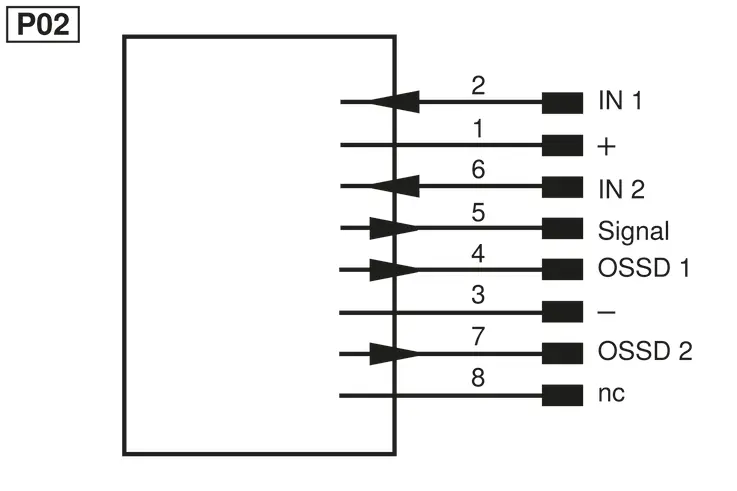

  • Connection: M12 × 1; 8-pin
  • Latching Force, typical: 18 N
  • Weight: 157 g
  • Operating principle: RFID
  • Coding: Individual, teachable
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • PFHD: 2,70 × E-10 1/h
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • PDDB (EN 60947-5-3): yes
  • Series Connection: yes
  • Permanent magnet: yes
  • Complementary Products: Seal Set Z0047, Safety Relay SR4B3B01S, SR4D3B01S, Software
Separating safety devices can be easily protected up to cat. 4 PL e using these contactless safety switches, even during series connection. Response and risk times remain unchanged at all times. Extensive diagnosis functions boost system availability and make installation and maintenance easier. The locking version can be used as a stop and secures small doors or flaps.
