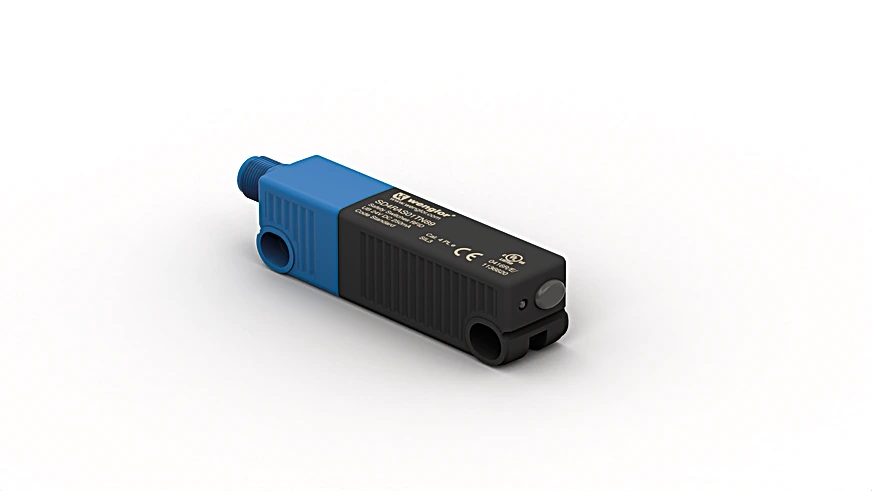

Wenglor SD4RAS01TN89 Safety Switch RFID

Features

• Easy to clean
• Protection mode IP69K
• Universal fastening opportunities
• High level of manipulation protection thanks to RFID coding
• Sensor Type: Switch
• Response Time: < 100 ms
• Risk time: < 200 ms
• Temperature Range: -13°F to 158°F
• Storage temperature: -13°F to 185°F
• Safety Output: OSSD
• Number of safety outputs (OSSDs): 2
• PNP Safety Output/Switching Current: < 250 mA
• Safety Output Voltage Drop: < 1 V
• Number of Signal Outputs: 1
• PNP signal output switching current: 50 mA
• Short Circuit Protection: yes
• Overload Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: II
• Switching Distance: 12 mm
• Protected Sao switching-off distance: 10 mm
• Protected Sar switching-off distance: 16 mm
• Housing Material: Plastic
• Degree of Protection: IP65, IP67, IP69K

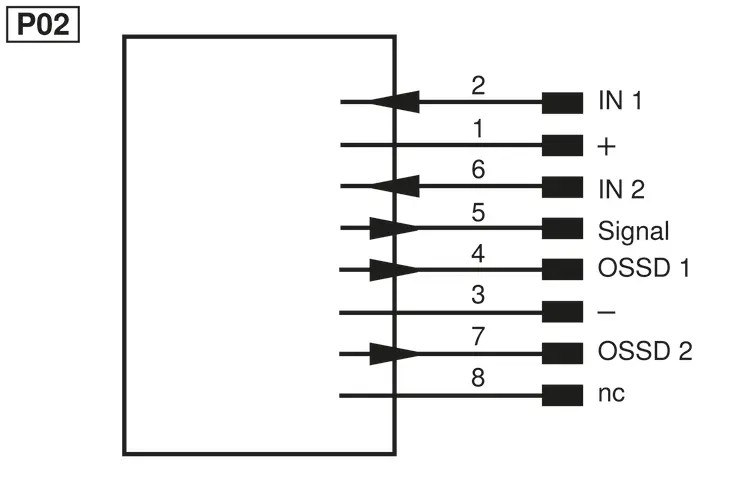

• Connection: M12 × 1; 8-pin
• Weight: 131 g
• Operating principle: RFID
• Coding: Individual, teachable
• Performance Level (EN ISO 13849-1): Cat. 4 PL e
• PFHD: 2,70 × E-10 1/h
• Safety Integrity Level (EN 61508): SIL 3
• Safety Integrity Level (EN 62061): SILCL 3
• PDDB (EN 60947-5-3): yes
• Series Connection: yes
• Complementary Products: Seal Set Z0047, Safety Relay SR4B3B01S, SR4D3B01S, Software
