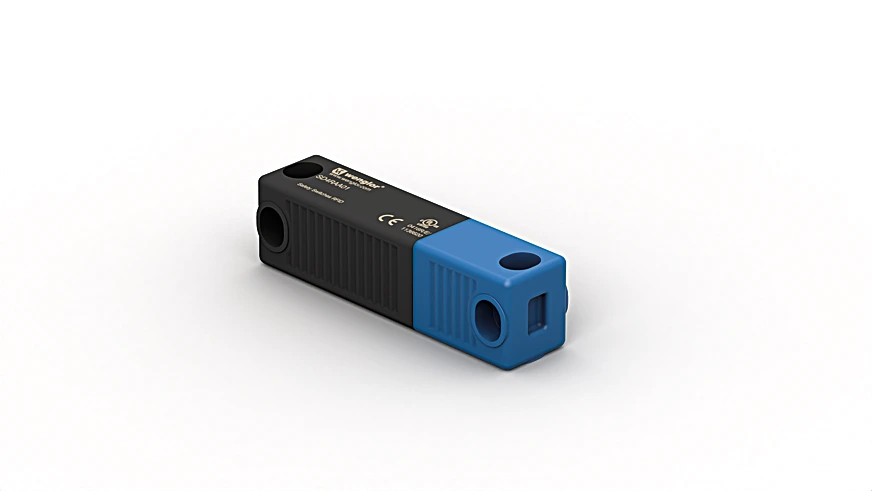

Wenglor SD4RAA02 Safety Switch RFID

Safety Switch RFID.

$83.20
Part Number
  • SD4RAA02
Highlights...

Features

  • Easy to clean
  • High level of manipulation protection thanks to RFID coding
  • Integrated locking
  • Protection mode IP69K
  • Universal fastening opportunities
  • Sensor Type: Actuator
  • Temperature Range: -13°F to 158°F
  • Storage temperature: -13°F to 185°F
  • Housing Material: Plastic
  • Degree of Protection: IP65, IP67, IP69K
  • Latching Force, typical: 18 N
  • Weight: 78 g
  • Operating principle: RFID
  • Permanent magnet: yes
  • Complementary Products: Seal Set Z0047, Software
Separating safety devices can be easily protected up to cat. 4 PL e using these contactless safety switches, even during series connection. Response and risk times remain unchanged at all times. Extensive diagnosis functions boost system availability and make installation and maintenance easier. The locking version can be used as a stop and secures small doors or flaps.
