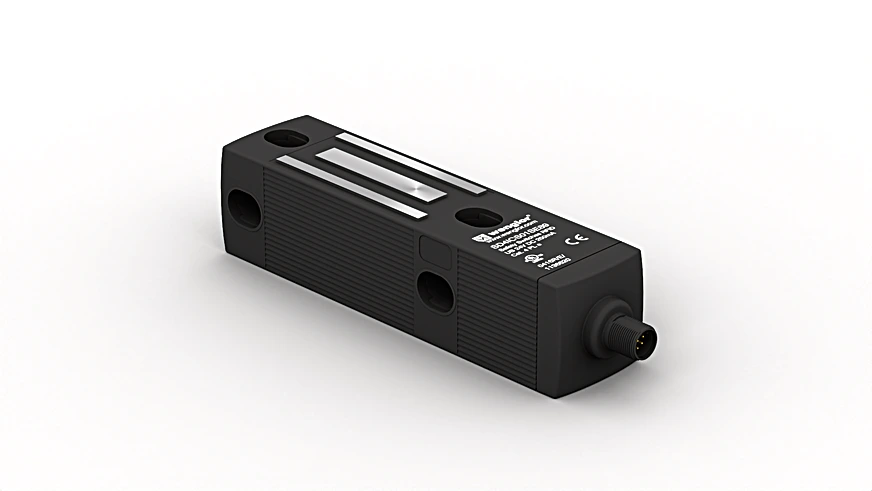

Wenglor SD4ICS14SE89 Safety Switch with Lock Function Electromagnetic, Power to Lock Principle

Safety Switch with Lock Function Electromagnetic, Power to Lock Principle.

$613.00
Part Number
  • SD4ICS14SE89
Highlights...

Features

  • Easy to clean
  • Extensive diagnosis
  • 500 N locking force
  • Adjustable locking force
  • Permanent magnet
  • Sensor Type: Locking unit
  • Response Time: < 150 ms
  • Risk time: < 150 ms
  • Temperature Range: -13°F to 131°F
  • Storage temperature: -13°F to 185°F
  • Safety Output: OSSD
  • Number of safety outputs (OSSDs): 2
  • PNP Safety Output/Switching Current: < 250 mA
  • Number of Signal Outputs: 1
  • PNP signal output switching current: 50 mA
  • Short Circuit Protection: yes
  • Protection Class: II
  • Housing Material: Plastic
  • Degree of Protection: IP65, IP67

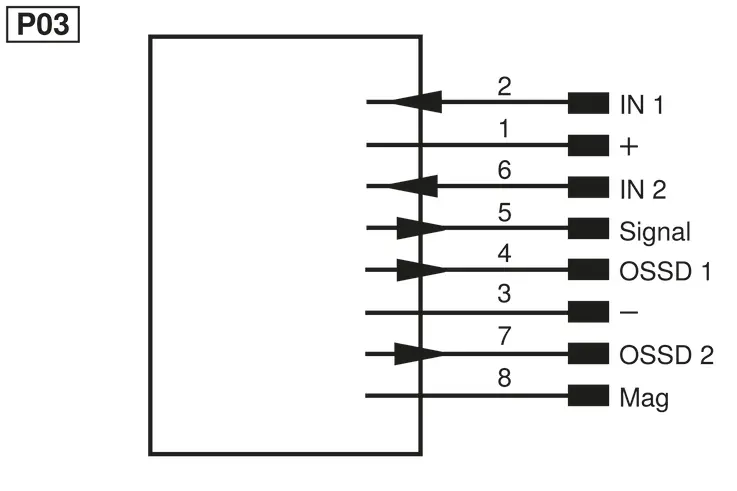

  • Connection: M12 × 1; 8-pin
  • Latching Force, typical: 45 to 115 N
  • Weight: 813 g
  • Operating principle: Inductively coded
  • Coding: Standard
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • PFHD: 3,50 × E-9 1/h
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • PDDB (EN 60947-5-3): yes
  • Locking Device: Power to lock principle
  • Locking Force F, guaranteed: 500 N
  • Locking Force Fmax, typical: 750 N
  • Series Connection: yes
  • Actuator monitored: yes
  • Electrical Detent Mechanism: yes
  • Complementary Products: Safety Relay SR4B3B01S, SR4D3B01S, Adjusting Target Z0048, Software
This innovative safety switch with lock function is suitable for process protection thanks to its locking force. Furthermore, a safety level of category 4 PL e (EN ISO 13849-1) can be fulfilled with just one safety switch with lock function and is retained even when connected in series. Reaction time and risk time remain unchanged when connected in series as well. Extensive diagnosis functions enhance system availability and simplify installation and maintenance. Thanks to the electromagnetic operating principle, the safety switches with lock function work in a fully contactless fashion and are thus wear-resistant and easy to clean.
